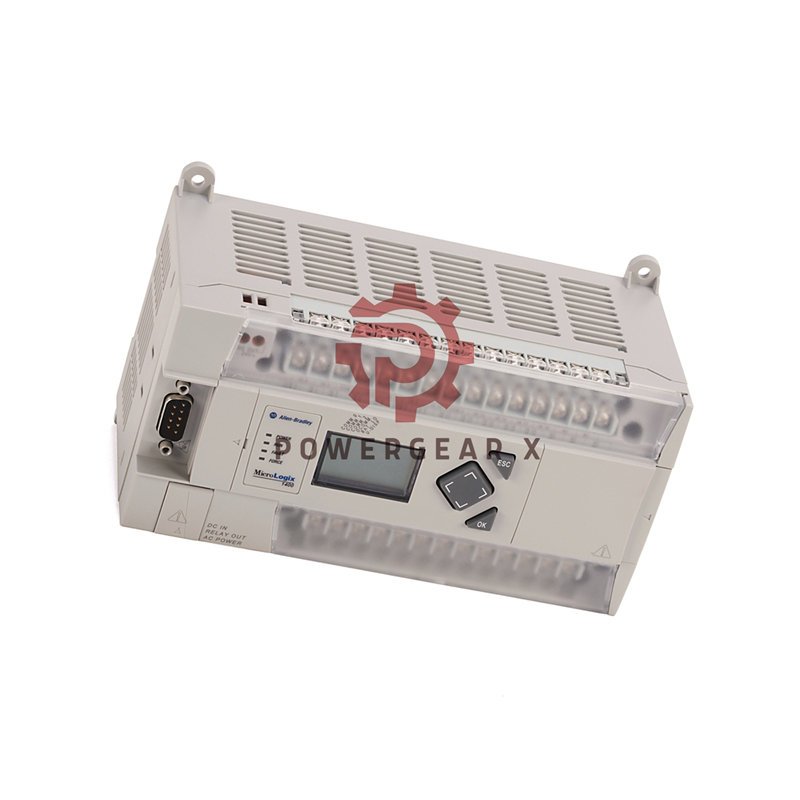

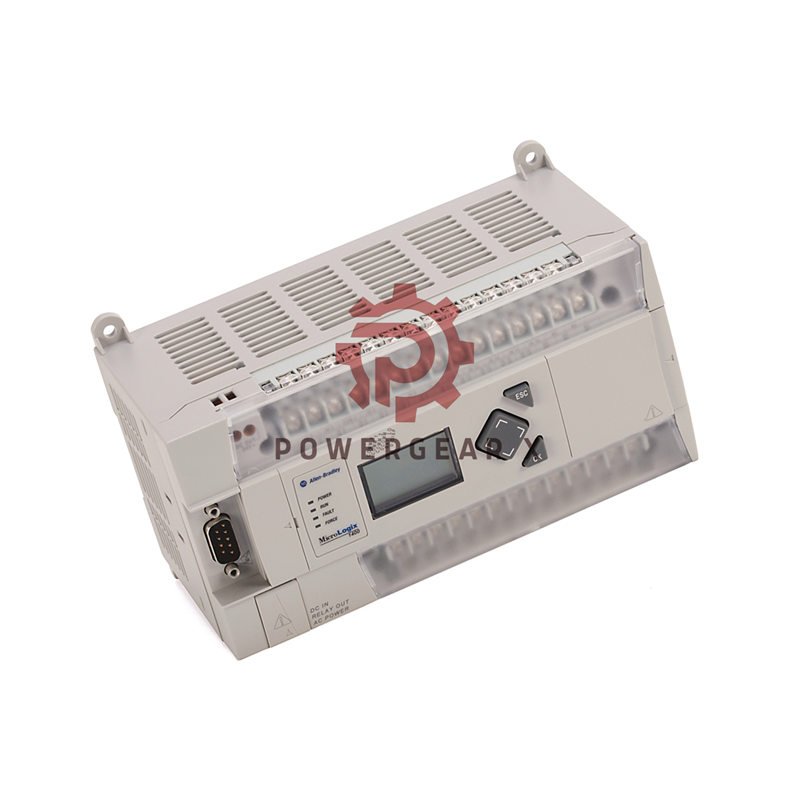

Allen-Bradley 1766-L32BWA: Advanced MicroLogix 1400 Controller
The 1766-L32BWA from Allen-Bradley (Rockwell Automation) delivers powerful control in a compact MicroLogix 1400 package. This AC-powered controller combines high-speed I/O with triple communication ports for maximum flexibility. It is perfect for machine automation and small process applications.
Complete Technical Specifications
- Brand & Manufacturer: Allen-Bradley (Rockwell Automation)
- Full Model Number: 1766-L32BWA
- Input Power: 100-240V AC, 47-63 Hz
- Digital Inputs: 12 fast (100 kHz) + 8 standard (24V DC)
- Outputs: 12 relay (10A @ 120/240V AC, 10A @ 24/125V DC)
- Memory Capacity: 20 KB user program/data
- Communication Ports: Ethernet, RS-232, RS-232/485 isolated
- Protocol Support: Ethernet/IP, MODBUS TCP/IP, MODBUS RTU, DNP3, DF1, ASCII
- High-Speed Counters: 6 embedded counters (100 kHz)
- Real-Time Clock: Built-in with battery backup
- Display: Backlit LCD for status monitoring
- Expansion Capacity: Supports up to 7 expansion modules
- Power Consumption: 120 VA maximum
- Dimensions: 90 x 180 x 87 mm (3.5 x 7.08 x 3.43 inches)
- Weight: 2.0 pounds (0.9 kg)
- Wire Size: 22 to 14 AWG recommended
Packaging & Shipping
- One (1) Allen-Bradley 1766-L32BWA controller unit
- One (1) Set of installation documentation
- We ship via FedEx, UPS, or DHL for reliable delivery worldwide
Frequently Asked Questions (FAQ)
- What is the maximum number of devices I can connect via MODBUS?
You can connect up to 32 devices using MODBUS RTU daisy-chain topology. - Can I use this controller for substation automation?
Yes, the DNP3 protocol support makes it suitable for substation applications with IEDs. - How do the high-speed inputs benefit my application?
They enable precise counting and timing for encoders, sensors, and rapid events. - What expansion modules are compatible with this controller?
It supports all 1762 series MicroLogix expansion I/O modules. - Can I send email alerts from this controller?
Yes, the built-in email capability allows automatic status and alarm notifications.
