1756-OW16IK Relay Output Module | 16 Isolated Outputs

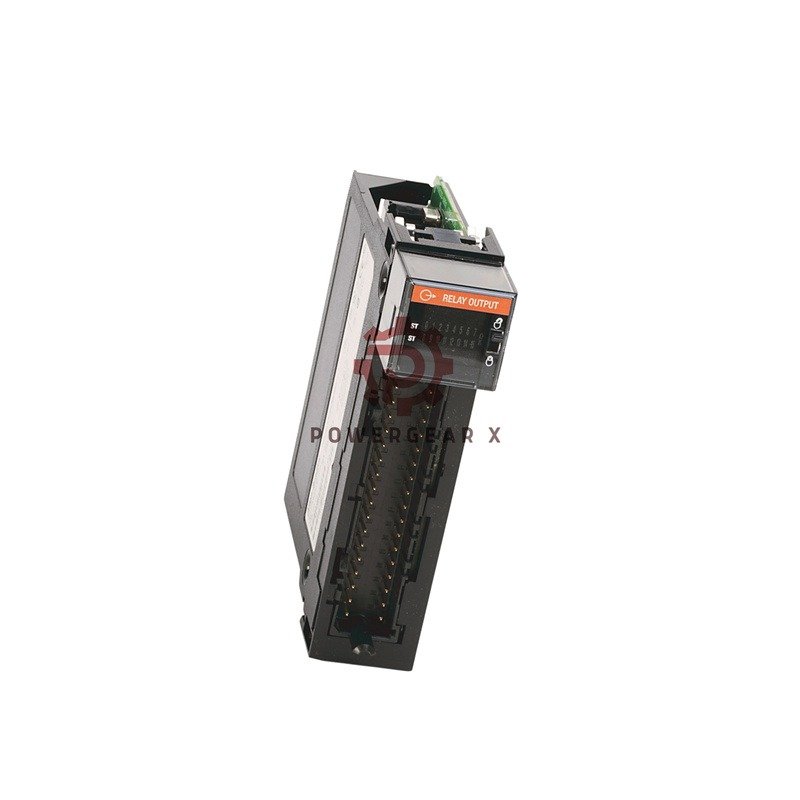

Allen-Bradley 1756-OW16IK ControlLogix Relay Output Module – 16 Isolated Outputs for Reliable Industrial Automation

Technical Specifications

• Brand: Allen-Bradley | Model: 1756-OW16IK
• Output Type: Relay (16 N.O. contacts)
• Voltage Range:
  • 10-265V AC / 5-150V DC operation
  • Max 240V AC / 125V DC output
• Current Capacity:
  • 2A @ 30V DC
  • 1.5A @ 120V AC
  • 0.75A @ 240V AC
• Response Time: <10ms switching
• Isolation: 250V continuous protection
• Temperature Range: 0°C to 60°C (32°F to 140°F)
• Power Consumption: 4.5W max
• Contact Life: 300k cycles (resistive)

Installation & Compatibility

• Single-slot ControlLogix chassis mounting
• Compatible with Logix5000 controllers
• Works with EtherNet/IP and ControlNet networks
• Requires 1756-TBCH or 1756-TBS6H terminal blocks
• Warning: Avoid hot-swapping in hazardous areas

Certifications & Warranty

• CE, UL, RoHS certified
• 12-month warranty
• Industrial noise immunity (EMI/RFI)

Package & Shipping

• Includes: 1756-OW16IK module
• Weight: 0.414kg (0.91lbs)
• Global shipping: FedEx, UPS, DHL
• Standard delivery: 2-3 business days

Frequently Asked Questions

• Q: Can I install without system shutdown?
  A: Yes, but avoid in hazardous locations
• Q: Minimum load per output?
  A: 10mA required per channel
• Q: Compatible with 1756-L8x controllers?
  A: Yes, all ControlLogix 5580 series
• Q: Expected contact life?
  A: 300,000 operations (resistive)
