1756-OV32E Fused Output Module | 32-Ch DC | ControlLogix

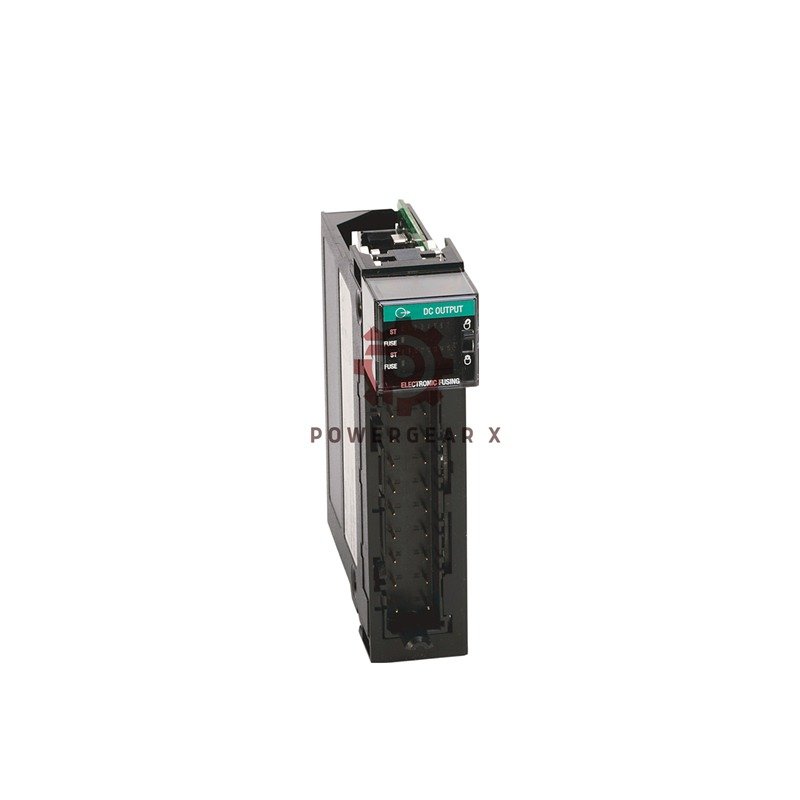

Allen Bradley 1756-OV32E ControlLogix Output Module – High-Density Fused Protection

Smart Protection Features

• 32 built-in electronic fuses – no blown fuses to replace
• Auto-reset after fault clearance
• Per-point fault isolation
• Short-circuit and overload protection

High-Density Performance

• Ultra-fast response: 300μs (OFF→ON)
• 1ms switching (ON→OFF)
• 0.5A per point @50°C capacity
• 16A total module current

Technical Specifications

• Brand/Model: Allen-Bradley 1756-OV32E
• Voltage Range: 10-30VDC
• Power Consumption: 5.88W max @60°C
• Leakage Current: <1mA per point
• Voltage Drop: 350mV @0.5A
• Isolation: 250V continuous

Industrial Tough Design

• Operating temp: 0-60°C (32-140°F)
• 30g shock resistance
• 5-95% humidity tolerance
• Vibration resistant: 5g @10-500Hz

Easy Integration

• Hot-swappable design
• Single-slot ControlLogix installation
• LED status per channel
• Terminal blocks: 1756-TBCH, 1756-TBS6H

Warranty & Shipping

• 12-month performance warranty
• Global delivery: FedEx | UPS | DHL
• Tested before shipment

Installation Resources

Download Full Specifications ↗
Complete wiring diagrams and technical details

Expert FAQs

• Q: How many outputs can fail without affecting others?
  A: All 32 outputs are independently protected
• Q: Minimum load requirement per point?
  A: Only 2mA needed
• Q: Can handle inrush currents?
  A: Yes – 2A surge for 10ms
• Q: LED colors and meanings?
  A: Green=active, Red=fault, Yellow=config mode
• Q: Replace without powering down?
  A: Yes – hot-swappable terminal blocks

Package Contents

• 1756-OV32E output module
• Installation documentation
