1756-IB16D Diagnostic Input Module | ControlLogix 16-Channel

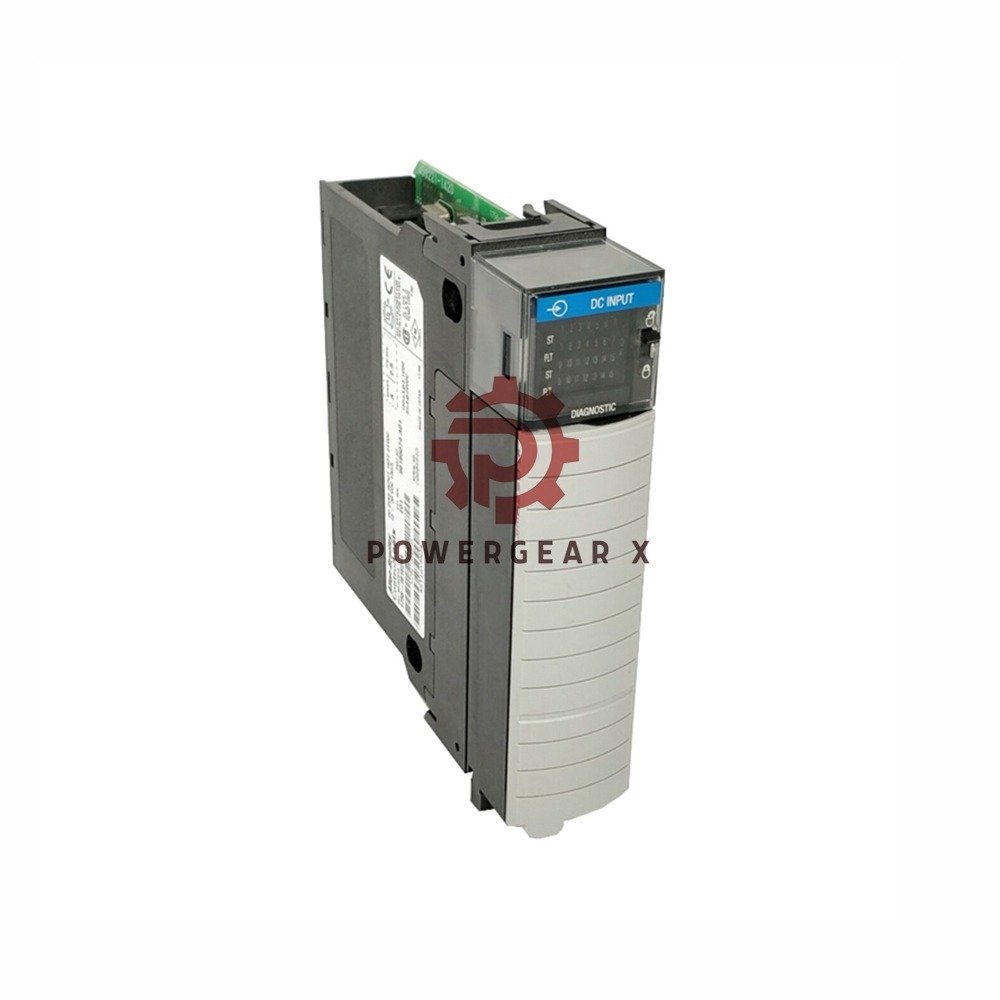

Allen-Bradley 1756-IB16D: Smart 16-Channel Diagnostic Powerhouse for Precision Control

Technical Excellence

• Model: 1756-IB16D | Series: ControlLogix
• Input Type: Diagnostic DC | Brand: Allen-Bradley
• Voltage Range: 10-30V DC
• Response Time: 0.34ms ON | 0.74ms OFF
• Current Sensing: 2-13mA (operating)
• Group Configuration: 4 channels/group (4 groups)
• Power: 5.8W max | Backplane: 150mA @5V
• Filter Options: 0/1/2ms (ON) | 0/1/9/18ms (OFF)

Critical Advantages

• ✅ Preemptive fault detection reduces downtime
• 📈 250% wider voltage tolerance than standard modules
• ⚡ 4x faster response than typical industrial inputs
• 🔧 Tool-free terminal blocks (TBS6H/TBCH)

Quick-Start Installation

• 1. Insert into ControlLogix chassis
• 2. Snap on 36-pin terminal block
• 3. Connect sensors/buttons
• 4. Configure diagnostics in Studio 5000

Global Support Package

• 🌍 Worldwide shipping: FedEx/UPS/DHL (48hr available)
• 🛡️ 12-month performance warranty
• 📦 Industrial-grade protective packaging
• 🔄 30-day no-questions return

Pro FAQs

• Q: Detects broken wires?
  A: Yes – live wire-break detection on all points
• Q: Timestamp accuracy?
  A: ±1ms event recording precision
• Q: Minimum pulse detection?
  A: 1ms signals (0ms filter setting)
• Q: Group isolation voltage?
  A: 250V between input groups
• Q: Works with 12V systems?
  A: Yes – operates down to 10V DC

Download Full Technical Guide

Get wiring diagrams and diagnostic setup:
1756-IB16D Manual (PDF)
