Product Overview

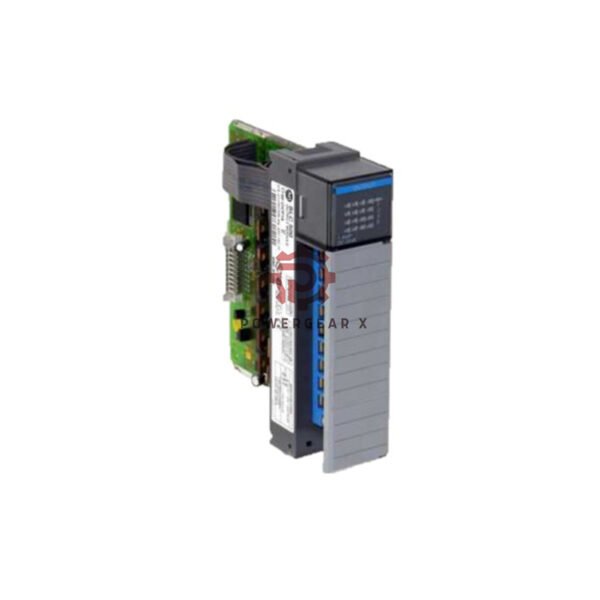

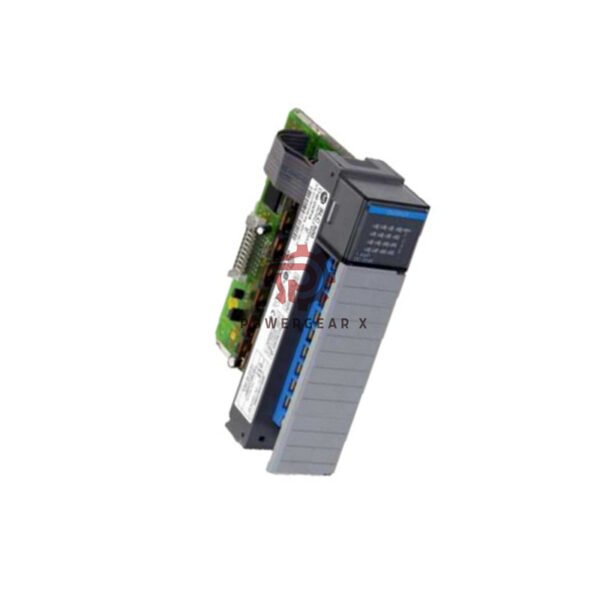

The Allen-Bradley 1746-OVP16 is a powerful digital output module for SLC 500 systems. It offers 16 sinking outputs for 24V DC applications. This module includes built-in fuse protection for safety. It is perfect for controlling high-current devices in industrial settings.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1746-OVP16
- Series: SLC 500
- Type: Digital DC Output Module (Sinking)
- Output Channels: 16
- Voltage Range: 20.4-26.4V DC
- Current per Point: 1.5A at 30°C
- Surge Current: 4A for 10ms
- On-State Delay: 0.1ms max
- Off-State Delay: 1ms max
- Backplane Current: 250mA at 5V DC
- Isolation: 1500V
- Operating Temperature: 0-60°C
- RF Immunity: 10V/m (30-2000 MHz)
- Shock Resistance: 30g
FAQ
- What does sinking output mean? It means the module connects the load to ground when active.
- How many fuses does it have? It has one fuse per output group.
- Can it work with AC loads? No, it is designed for DC loads only.
- What wire size should I use? We recommend 14-16 AWG wire.
- Is it waterproof? No, it must be installed in a protected enclosure.
Shipping & Warranty
- 12-month warranty
- Worldwide shipping via FedEx, UPS, DHL
- Usually ships within 24 hours
Resources
Need more details? Download the complete product manual: SLC 500 Hardware Manual PDF
