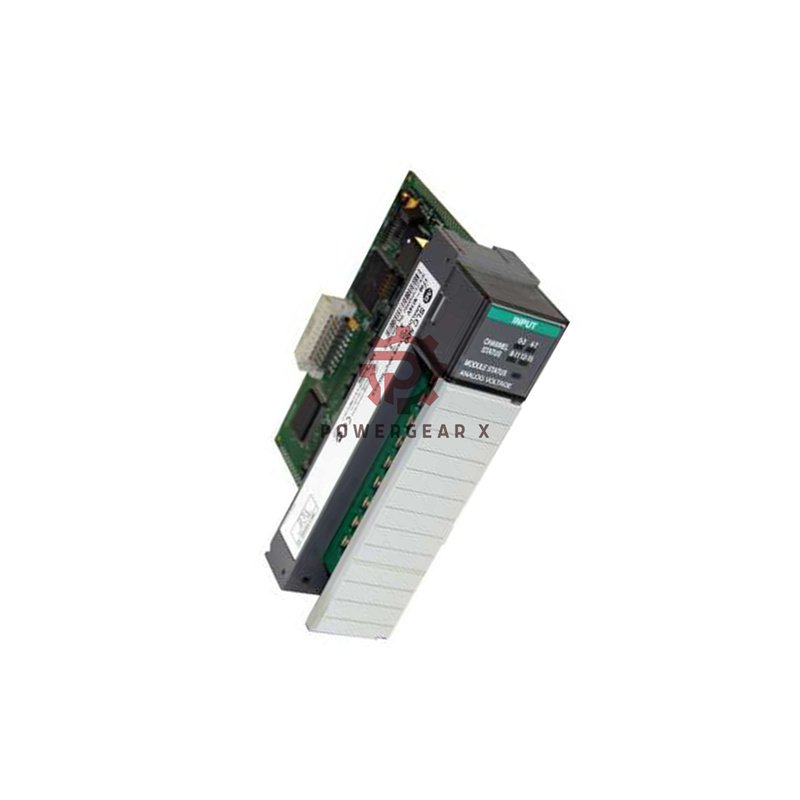

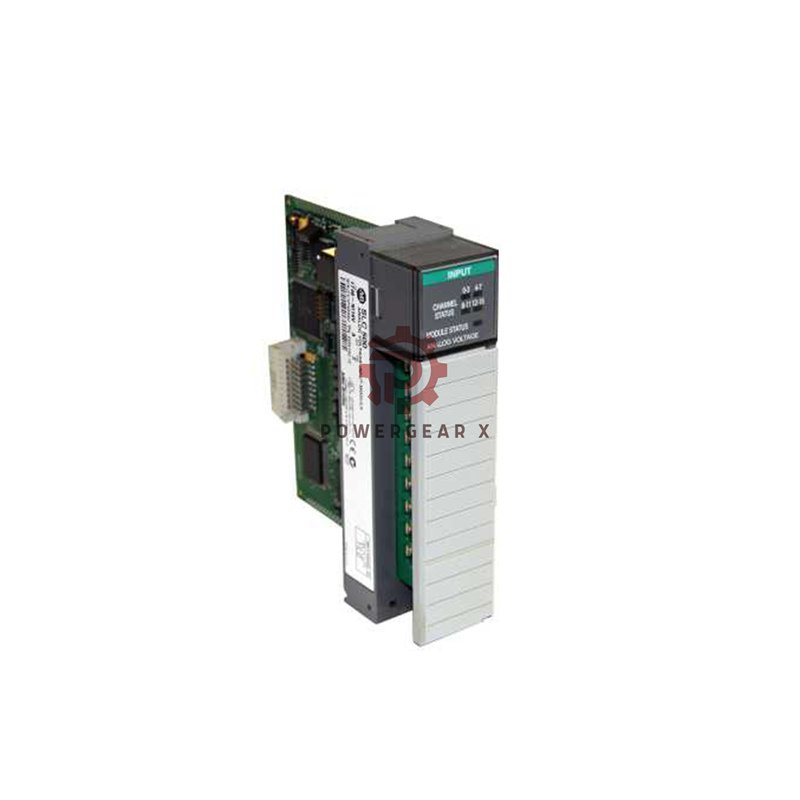

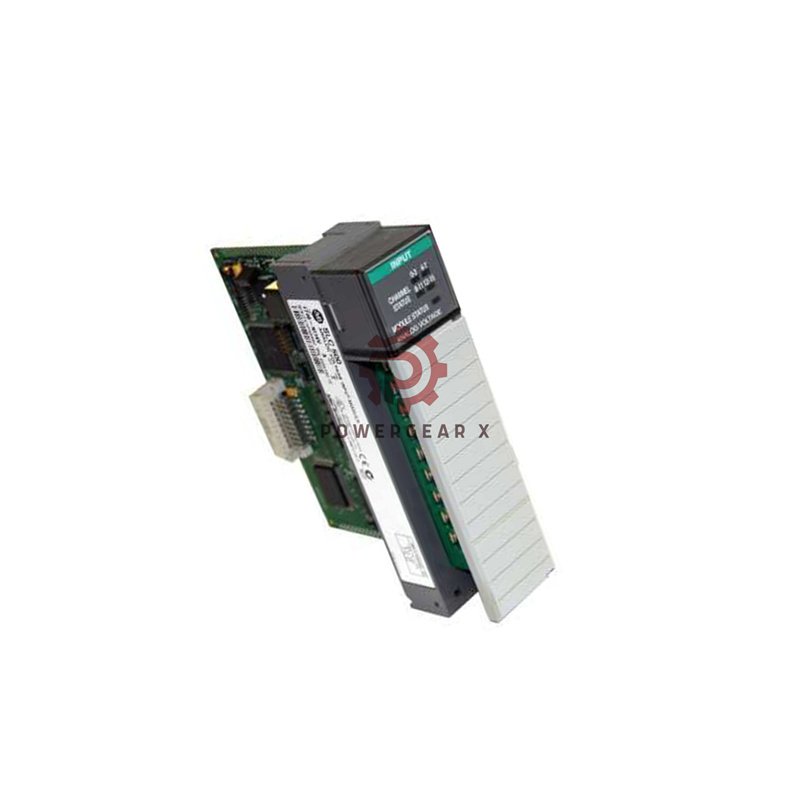

Allen-Bradley 1746-NI16V: 16-Channel Voltage Input Module for SLC 500 | High Precision
Product Overview
The 1746-NI16V analog module reads voltage signals. It works with SLC 500 systems. It has sixteen input channels. Perfect for precise measurements. Easy to install and configure.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1746-NI16V
- Series: SLC 500
- Type: 16-Channel Voltage Input Module
- Input Ranges: ±10V, 0-5V, 0-10V, 1-5V
- Resolution: 16-bit
- Update Rate: 9-630 milliseconds
- Filter Options: 8 programmable frequencies
- Isolation: 500V AC protection
- Power Usage: 125mA at 5V, 75mA at 24V
- Operating Temp: -25°C to 60°C
- Input Impedance: 20 MΩ
- Connector Type: 25-pin D-shell
Installation Guide
- Install in any slot except slot 0
- Use Belden #8761 shielded cable
- Disconnect power before installation
- Check all wire connections
Shipping & Warranty
- 12-month warranty
- Worldwide shipping via FedEx, UPS, DHL
- Fast delivery options available
Expert FAQ
- Q: What processors work with this module?
A: All SLC 500 processors are compatible. - Q: Can I use different voltage ranges?
A: Yes, it supports four voltage ranges. - Q: How do I reduce signal noise?
A: Use the programmable digital filters. - Q: Is it safe for harsh environments?
A: Yes, it is Class 1 Division 2 certified. - Q: What cable should I use?
A: Belden #8761 or equivalent shielded cable.
