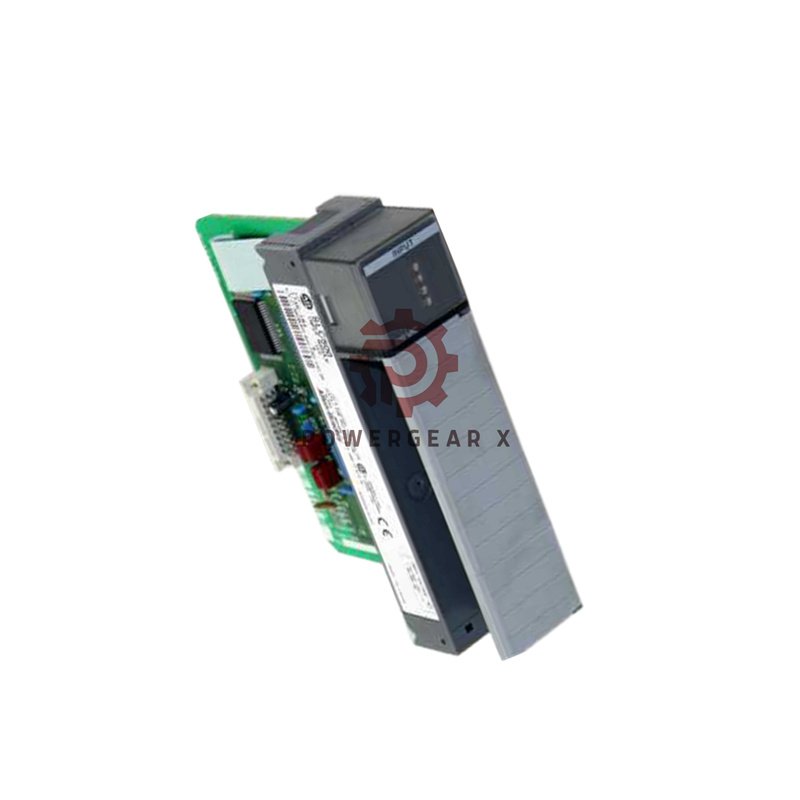

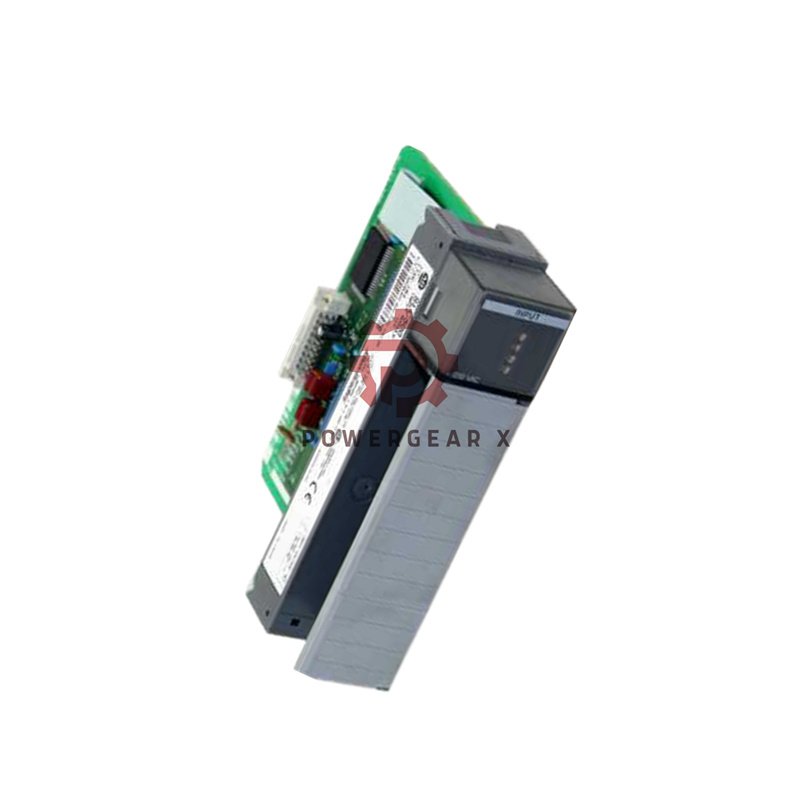

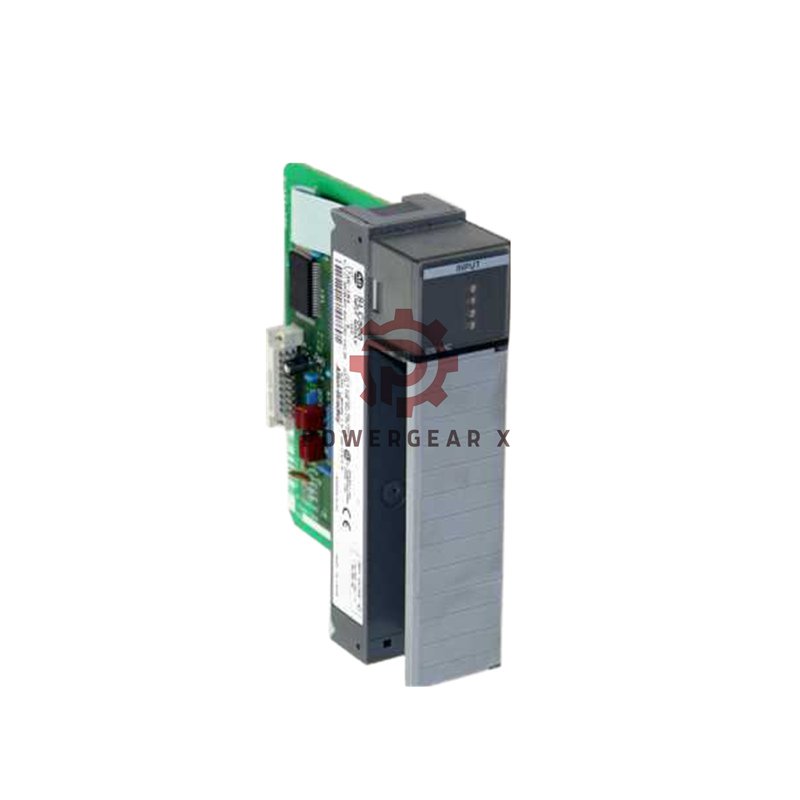

1746-IM4 High-Voltage Input Module | 4 AC Inputs for SLC 500

High-Voltage AC Input Module

The Allen-Bradley 1746-IM4 connects high-voltage devices to your SLC 500 system. This AC input module handles four 240V AC signals. It is built for industrial motor control and power monitoring. The 1746-IM4 provides reliable performance in tough conditions.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1746-IM4
• Series: SLC 500
• Input Type: 4-point AC
• Voltage Range: 170-265V AC
• Frequency: 47-63 Hz
• Nominal Voltage: 240V AC
• Input Current: 12mA @ 240V AC
• Response Time: 35ms ON, 45ms OFF
• Isolation Voltage: 1500V AC
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Certifications: UL, CSA, C-UL
• Surge Protection: 1.6A surge capability
