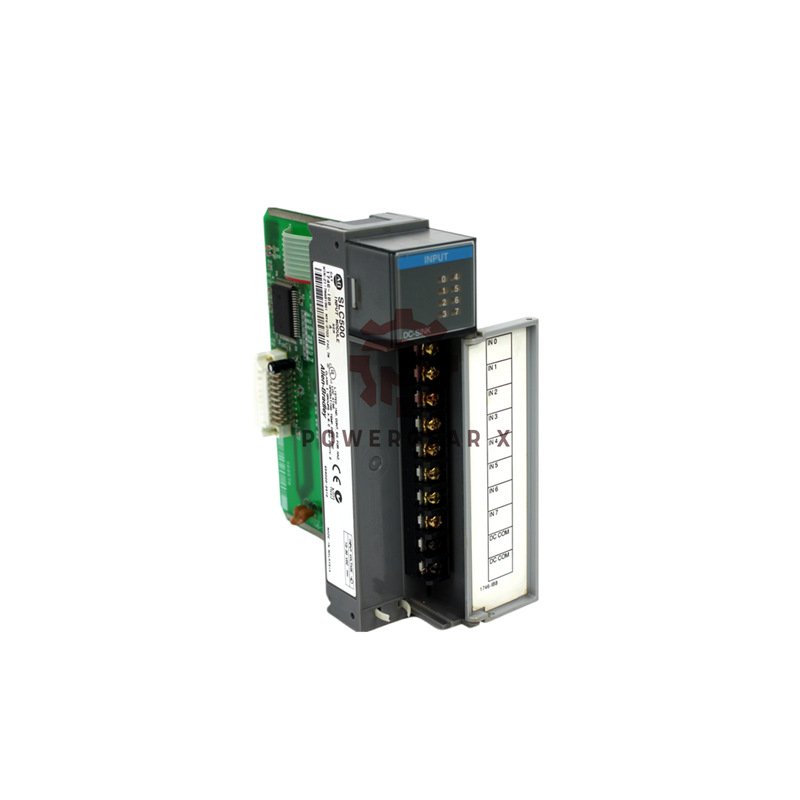

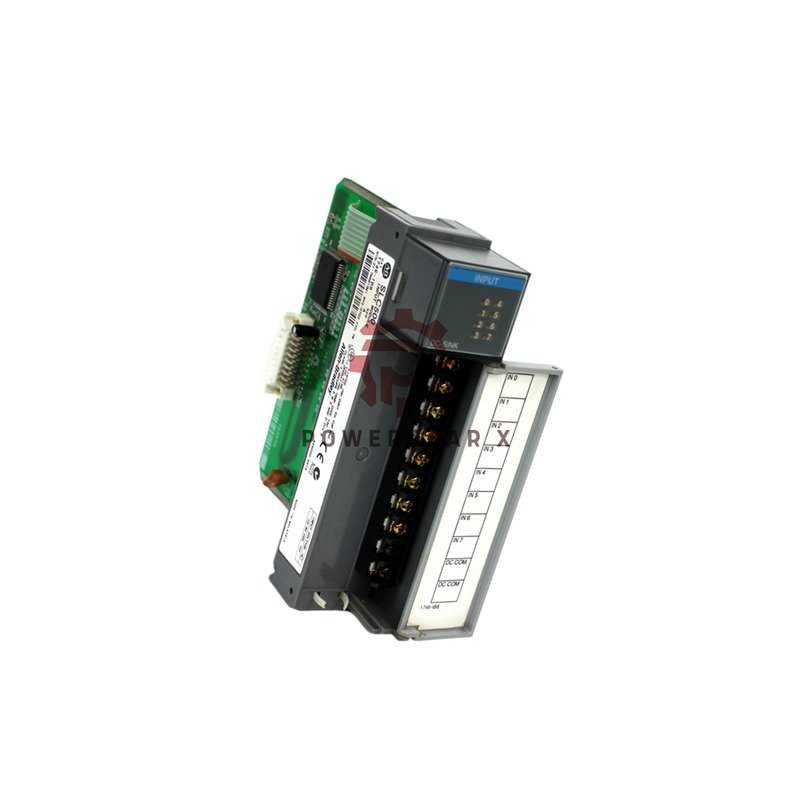

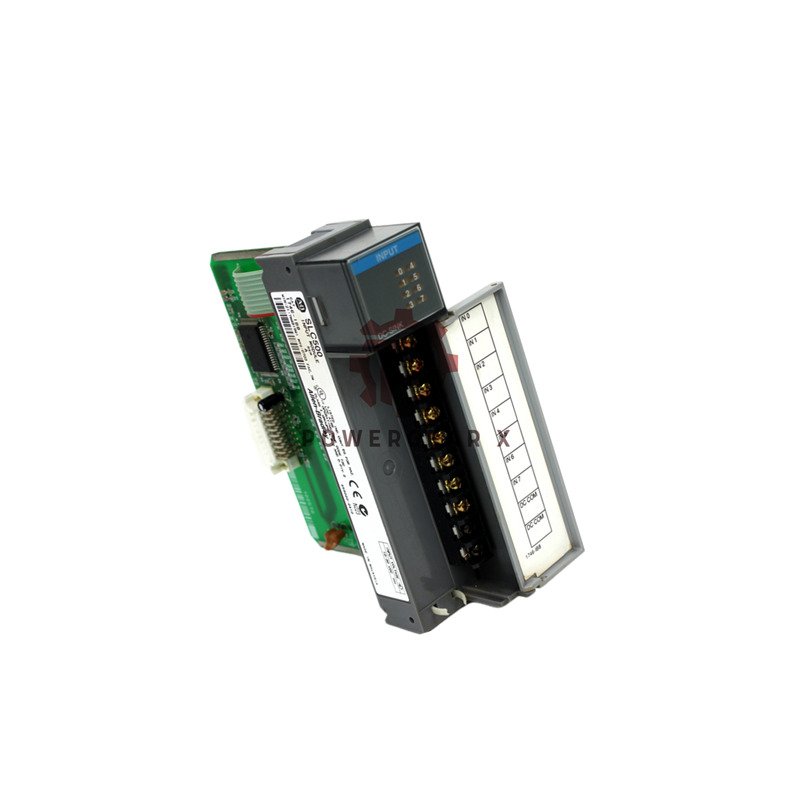

1746-IB8 Digital Input Module | 8 Sinking Inputs

Reliable Digital Input Module

The Allen-Bradley 1746-IB8 connects your SLC 500 system to the real world. This digital input module offers eight 24V DC sinking inputs. It works in tough industrial environments. The 1746-IB8 ensures stable signal reading for your automation tasks.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1746-IB8
• Series: SLC 500
• Input Type: 8-point sinking DC
• Voltage Range: 10-30V DC
• Nominal Voltage: 24V DC
• Input Current: 8mA @ 24V DC
• Response Time: 8ms ON/OFF
• Backplane Current: 50mA @ 5V DC
• Isolation Voltage: 1500V AC
• Operating Temperature: 0 to 60°C
• Certifications: UL, CE, Class 1 Div 2
• Power Dissipation: 1.3W total
