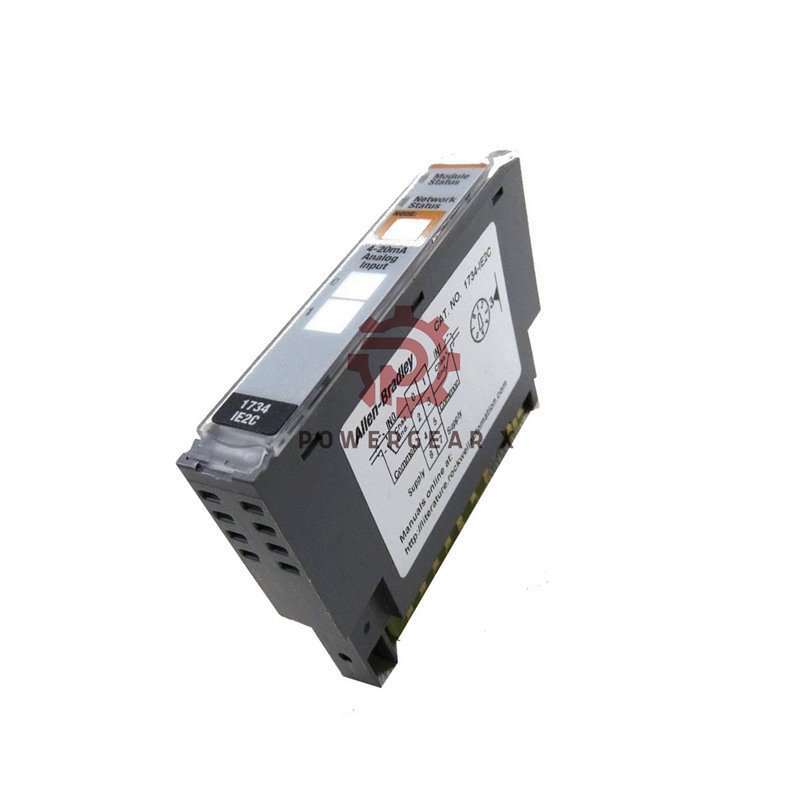

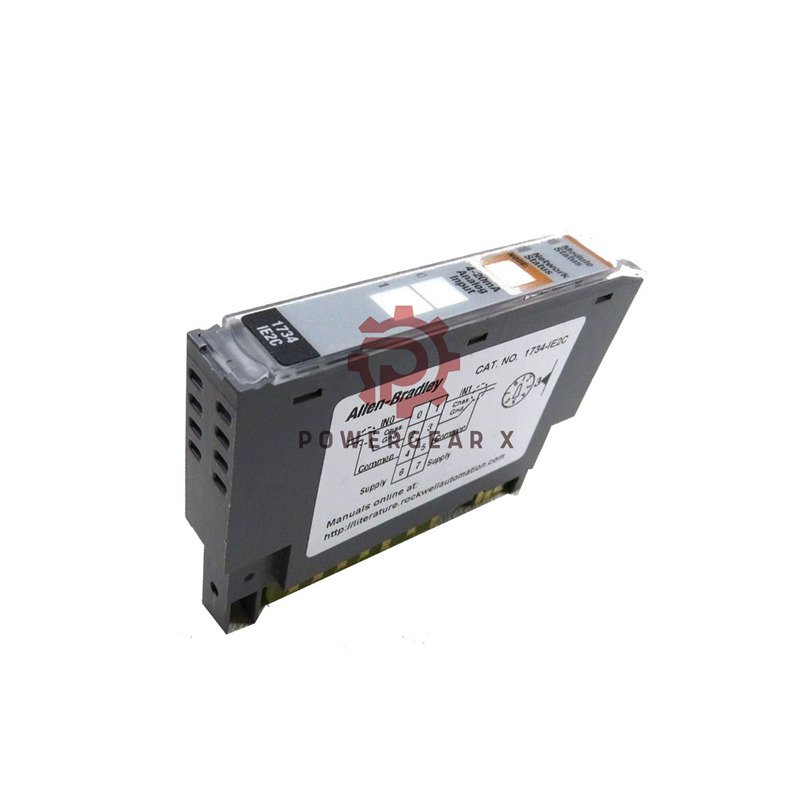

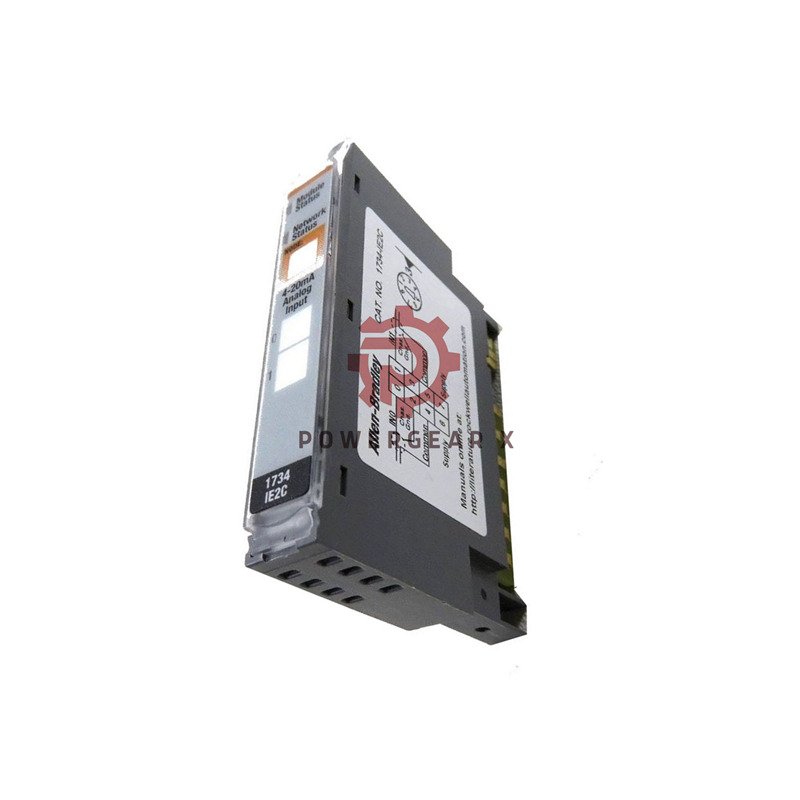

Allen-Bradley 1734-IE2C POINT I/O Analog Input Module
The Allen-Bradley 1734-IE2C provides precise current measurement for industrial automation. This compact module offers two configurable input channels. It delivers high accuracy and excellent performance.
Technical Specifications
- Brand: Allen-Bradley
- Manufacturer: Rockwell Automation
- Series: POINT I/O
- Model Number: 1734-IE2C
- Input Channels: 2 single-ended non-isolated
- Input Ranges: 0-20mA or 4-20mA selectable
- Resolution: 16-bit (0.32 μA/count)
- Accuracy: 0.1% full scale at 25°C
- Update Rate: 12-120 ms (configurable)
- Step Response: 8-80 ms (configurable)
- Power Supply: 10-28.8V DC (24V DC nominal)
- Power Consumption: 10 mA maximum
- Isolation Voltage: 50V continuous
- Dimensions: 56 x 12 x 75.5 mm
- Weight: 36 grams
Installation Requirements
- Requires compatible terminal base unit
- Use 22-14 AWG shielded copper wire
- Set keyswitch to position 3 during installation
- Mount on standard 35mm DIN rail
- Ensure proper grounding for noise immunity
Frequently Asked Questions
- What wire type should I use with this module?
Use 22-14 AWG shielded copper wire rated for 75°C or higher. - Can I use different ranges on each channel?
Yes, each channel independently configures for 0-20mA or 4-20mA. - What controllers support this module?
It works with CompactLogix, ControlLogix, and other Allen-Bradley controllers. - How do I set the filter frequency?
Configure notch filter settings from 50Hz to 500Hz via software. - Is external calibration required?
No, the module comes factory calibrated and ready for use.
