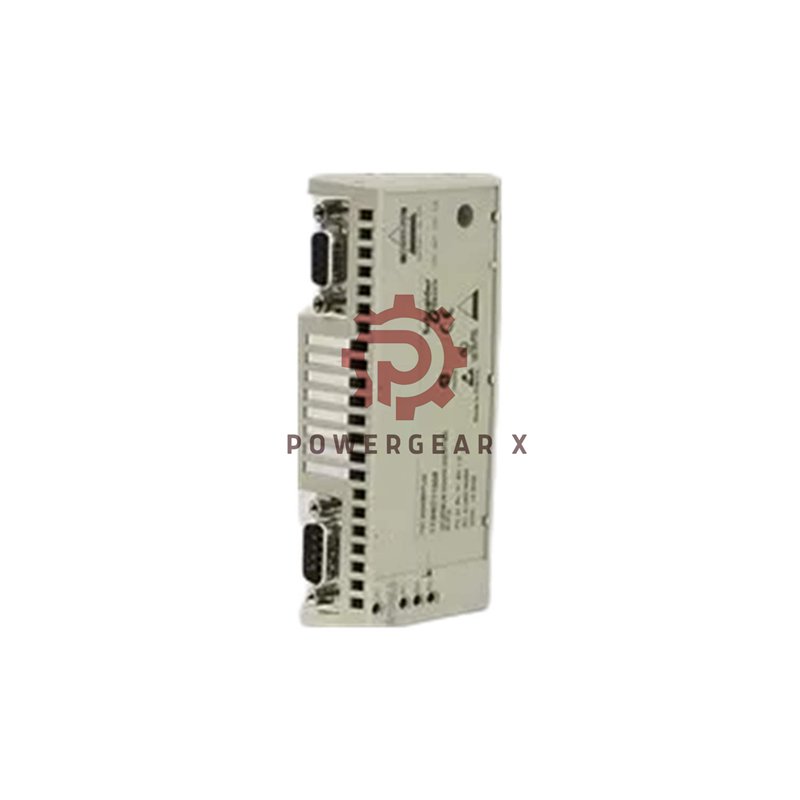

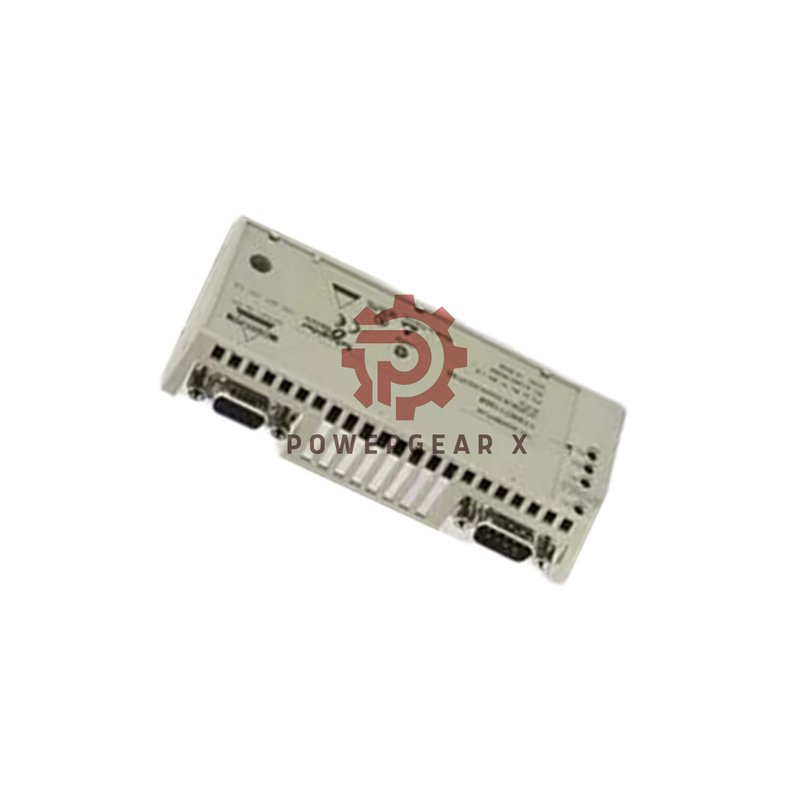

Schneider Electric 170INT11003C Communication Adapter Overview
Author: Powergear X Automation
The 170INT11003C is a compact and fast communication adapter for the Modicon Momentum line. It links devices in a ring network and keeps data stable over long distances. It is simple to install and built for harsh plant areas. Warranty: 12 months. Shipping: FedEx, UPS, DHL.
Main Features
- Fast 500 kbit/s data rate
- Links up to 254 nodes per segment
- Max cable length 12,800 m
- LED status indicator for quick check
- Ring topology for stable data flow
- Two SUB-D 9 connectors for easy plug-in
- Fail-safe mode for safer operation
- Lightweight design (0.07 kg)
- Protection class: IP20
- EM field resistance: 10 V/m
- Static discharge resistance: 4 kV / 8 kV
- Low power use and low heat build-up
Extra Technical Data
- Bus type: Proprietary Momentum network
- Device scan time: < 2 ms typical
- Start-up time: < 200 ms
- Isolation rating: 500 V AC
- Recommended cable: Shielded twisted pair
- Mounting: DIN-rail clip type
- Storage temp: -25°C to +70°C
- Vibration resistance: 1 g, 10–150 Hz
Why This Adapter Is a Good Choice
- Handles long-distance networks without loss
- Good for old and new Momentum systems
- Simple wiring makes setup fast
- Strong against EM noise and static hits
- Works well in control rooms and machine areas
Contact Information
Inquiries: sales@powergearx.com
WhatsApp: +86 18030005825
FAQ
1. How long can this adapter run without signal loss?
The unit keeps stable data up to 12,800 m when the cable is installed correctly.
2. Can it be added to an old Momentum system?
Yes. It works with both old and new racks as long as the network rules match.
3. What should I check first when the LED shows abnormal status?
Check cable shield, grounding, and the last changed device. These cause most field issues.
4. Does the ring network recover after a cable break?
In many cases yes, because the ring path allows data to move from the other side.
5. What is the best way to reduce EM noise on this module?
Use shielded cable, short ground paths, and keep wiring away from high-power drives.
