144-202-000-236 Vibro-Meter CA202 Piezoelectric Accelerometer | 20m Cable Version

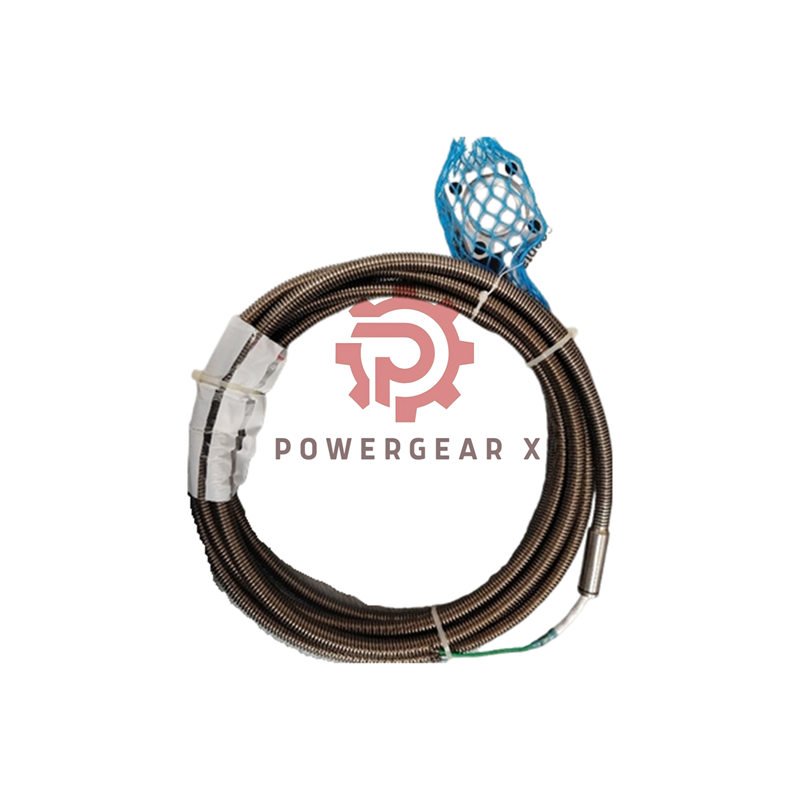

Vibro-Meter CA202 Piezoelectric Accelerometer (Part No. 144-202-000-236)

• Brand: Vibro-Meter®
• Model: CA202
• Part Number: 144-202-000-236
• Warranty: 12 Months
• Shipping: FedEx / UPS / DHL
• Inquiries: sales@powergearx.com ｜
  +86 18030005825

CA202 piezoelectric accelerometer is a rugged, high-sensitivity vibration sensor for industrial and hazardous use. The 144-202-000-236 model comes with a 20 m stainless-steel protected cable for extended installation flexibility and stability.

Technical Summary

• Output Type: Charge, 2-pin system
• Sensitivity: 100 pC/g ±5%
• Dynamic Range: 0.01 to 400 g peak
• Frequency Range: 0.5 – 6000 Hz ±5%
• Resonant Frequency: > 22 kHz
• Overload Limit: Up to 500 g peak
• Transverse Sensitivity: ≤ 3%
• Insulation Resistance: ≥ 10⁹ Ω
• Temperature: −55°C to +260°C (sensor)
• Cable: 20 m integral, heat-resistant, low noise

Material & Construction

• Case Material: Austenitic stainless steel (1.4441)
• Protection Hose: Heat-resistant stainless steel (1.4541)
• Sealing: Fully hermetically welded
• Corrosion Protection: Resistant to oil, steam, humidity, and sea salt
• Shock Limit: ≤ 1000 g peak
• Mounting Torque: 15 N•m (M6 × 35 screws)

Ordering Breakdown

• Type: CA202
• Designation: Standard version with 20 m cable
• Part Number: 144-202-000-236
• Suffix Tree:
  • 144 → Vibro-Meter Product Line
  • 202 → CA202 Accelerometer Series
  • 000 → Standard Assembly
  • 236 → 20 m Cable Version

Product Advantages

• Long 20 m integral cable for flexible setup
• High sensitivity and low noise output
• Excellent temperature resistance up to 260°C
• Corrosion-proof and hermetically sealed body
• No power supply needed
• Fast installation and high accuracy

Professional FAQ

• Is the CA202 144-202-000-236 suitable for outdoor use?
  Yes, its sealed stainless-steel design prevents moisture, dust, and corrosion damage.
• Can the CA202 operate at high temperatures?
  It works continuously up to +260°C and can survive short peaks of +280°C.
• Does the sensor need regular calibration?
  No, the CA202 maintains stable performance and typically requires no recalibration.
• How should I mount the CA202?
  Use four M6 screws with 15 N•m torque for optimal contact and stability.
• Which signal conditioner is compatible?
  The CA202 works with charge converters such as IPC70x series.
