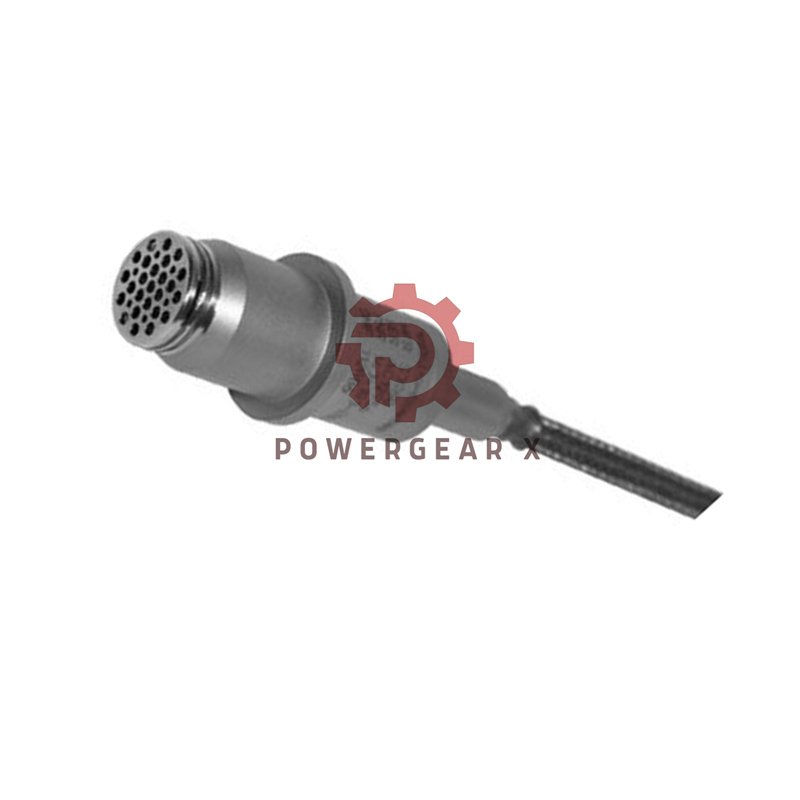

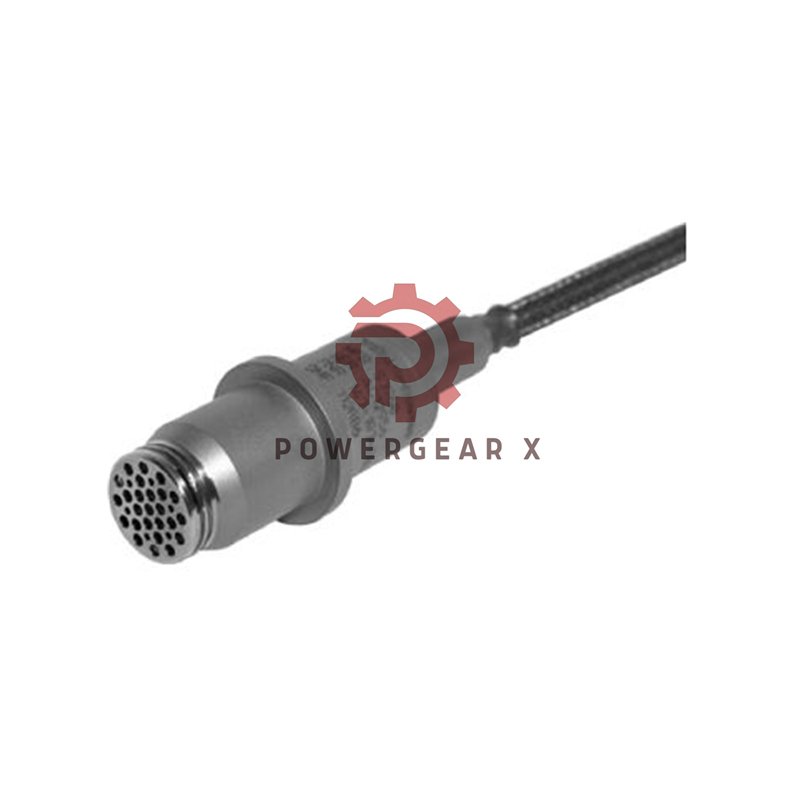

143-216-000-041 Vibro-Meter CP 216 Piezoelectric Pressure Transducer

Overview

The CP 216 143-216-000-041 piezoelectric pressure transducer delivers stable and reliable dynamic pressure measurements across extreme temperature and pressure conditions. Designed by Vibro-Meter, it is ideal for gas turbines and other harsh environments where accuracy and endurance are critical.

Technical Specifications

• Sensitivity: 200 pC/bar (13.8 pC/psi) at 2 Hz
• Frequency Response: 2 Hz to 15 kHz ±5%
• Dynamic Measuring Range: 0.0005 bar to 250 bar
• Overload Capacity: up to 350 bar (5076 psi)
• Linearity: within ±1% over the full range
• Acceleration Sensitivity: ≤0.5 pC/g
• Resonant Frequency: > 80 kHz
• Capacitance: 320 pF + 200 pF/m cable
• Temperature Range (continuous): −54°C to 470°C
• Extreme Temperature Range: −70°C to 520°C
• Connector Options: LEMO or Vibro-Meter High-Temperature Connector

Key Features

• Extreme temperature capability from −70°C to 520°C.
• High pressure tolerance up to 350 bar.
• Certified for use in potentially explosive atmospheres.
• Constructed with NIMONIC® alloy 90 and INCONEL® alloy 600 cable.
• Factory dynamic calibration at 1 bar peak and 2 Hz — no recalibration needed.
• Internal insulation ensures accurate charge output and signal stability.

Packaging Contents

• 1 × CP 216 Piezoelectric Pressure Transducer (integral MI cable)
• 1 × Connector assembly (LEMO or high-temperature type)
• 1 × Product datasheet and quick installation guide
• 1 × Protective foam or tube packaging (FedEx / UPS / DHL shipping)

Ordering Information

• Type: CP 216 — Piezoelectric pressure transducer
• Designation: Piezoelectric pressure transducer with LEMO connector
• Cable Length: 2 meters (standard)
• Ordering Number: 143-216-000-041
• Suffix Tree:
  • CP 216 Family
    • –05 : Unthreaded 50 mm length option
    • –25 : 250 mm overall case length option

Shipping & Handling

• Ships via FedEx, UPS, or DHL with protective foam packaging.
• Each shipment includes labeled parts for easy receiving and setup.
• Include ordering code 143-216-000-041 in your purchase order for tracking.

FAQ

• Q: What is the typical sensitivity of the CP 216 transducer?
• A: It provides 200 pC/bar sensitivity at 2 Hz under standard factory calibration.
• Q: What temperature range does the CP 216 operate in?
• A: It operates from −54°C to 470°C continuously, and −70°C to 520°C for extreme applications.
• Q: Which connector should I choose?
• A: Use the Vibro-Meter high-temperature connector for conditions above 155°C, or LEMO for general use.
• Q: Does it require recalibration after installation?
• A: No, factory calibration at 1 bar peak and 2 Hz ensures long-term accuracy.

Manufacturer & Series

• Manufacturer: Vibro-Meter®
• Series: CP 216 High-Temperature Piezoelectric Pressure Transducer Series
