143-216-000-031 Vibro-Meter CP 216 Piezoelectric Pressure Transducer | Industrial Sensor

Product Overview

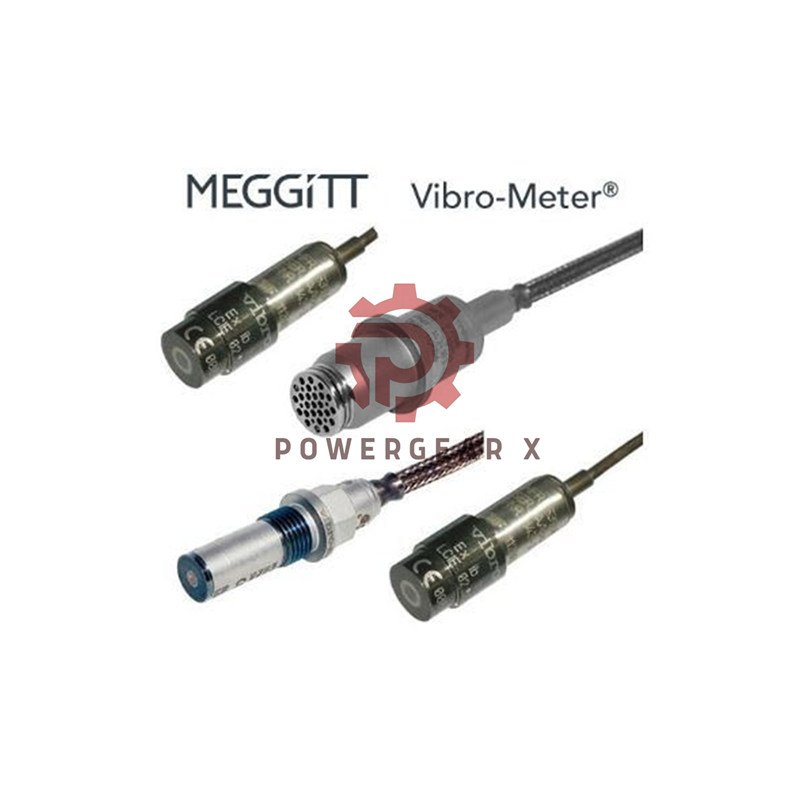

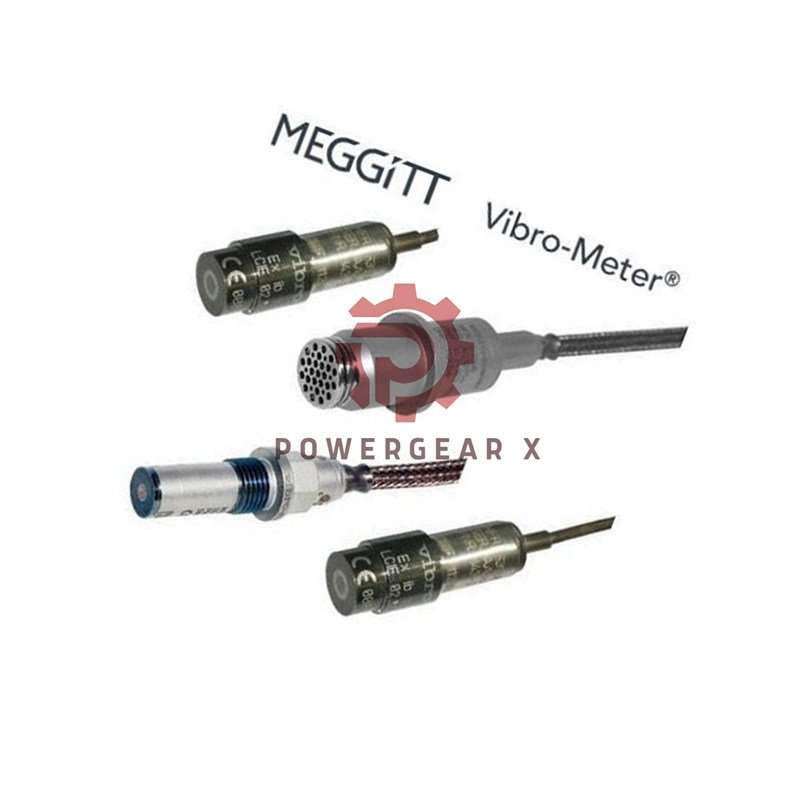

The Vibro-Meter CP 216 143-216-000-031 piezoelectric pressure transducer delivers precise and stable dynamic pressure measurement across a wide temperature range. Designed for gas turbines and harsh industrial environments, this sensor ensures reliable performance under extreme thermal and mechanical conditions.

Key Technical Specifications

• Sensitivity: 200 pC/bar (13.8 pC/psi) for high signal resolution.
• Dynamic Measuring Range: 0.0005 to 250 bar (0.007 to 3626 psi).
• Overload Capacity: withstands up to 350 bar (5076 psi).
• Frequency Response: 2 Hz to 15 kHz ±5%, ideal for high-speed pressure variations.
• Linearity: within ±1% across full range.
• Acceleration Sensitivity: ≤ 0.5 pC/g, ensuring vibration immunity.
• Resonant Frequency: above 80 kHz.
• Capacitance: 320 pF (sensor) + 200 pF/m (cable).
• Insulation Resistance: >10⁹ Ω at room temperature; >5×10⁴ Ω at 450°C.

Environmental & Material Features

• Temperature Range: Continuous −54 to 470°C; extreme −70 to 520°C.
• Connector Temperature: LEMO (−55 to 155°C); High-temp connector (−70 to 650°C).
• Shock Resistance: <2000 g (1 ms half sine).
• Construction: NIMONIC® 90 body, INCONEL® 600 cable for corrosion resistance.
• Radiation Resistance: Gamma 10¹⁰ erg/g and neutron 10¹⁷ n/cm² without degradation.

Manufacturer, Model, and Ordering

• Brand: Vibro-Meter® (Bently Nevada family)
• Model: CP 216 – Piezoelectric compression-mode transducer
• Ordering Number: 143-216-000-031
• Cable Length: 1 meter standard

Suffix Configuration Tree

• CP 216
  • – LEMO connector (−55 to 155°C)
  • – High-Temperature connector (−70 to 650°C)
  • – Cable Length Options: 1 m, 2 m, 5 m, or custom
• Example: 143-216-000-031 = CP 216 with LEMO connector, 1 m cable

Packaging Contents

• 1 × Vibro-Meter CP 216 pressure transducer with attached MI cable.
• 1 × LEMO or Vibro-Meter high-temperature connector (based on order).
• 1 × Mounting and installation instruction sheet.
• Protective packaging for safe transport.
• Shipping methods available via FedEx, UPS, or DHL worldwide.

FAQ

• Q: What is the maximum pressure range for the CP 216?
  A: It can accurately measure up to 250 bar and tolerate spikes up to 350 bar.
• Q: How do I connect this sensor to my monitoring system?
  A: Use a compatible charge converter or IPC 704 unit and ensure proper grounding.
• Q: Which connector should I choose for extreme environments?
  A: Select the high-temperature connector rated up to 650°C for turbine applications.

Contact & Sales

• Email: sales@powergearx.com
• WhatsApp: +86 18030005825
• Request detailed datasheet or quote by contacting our technical team directly.
