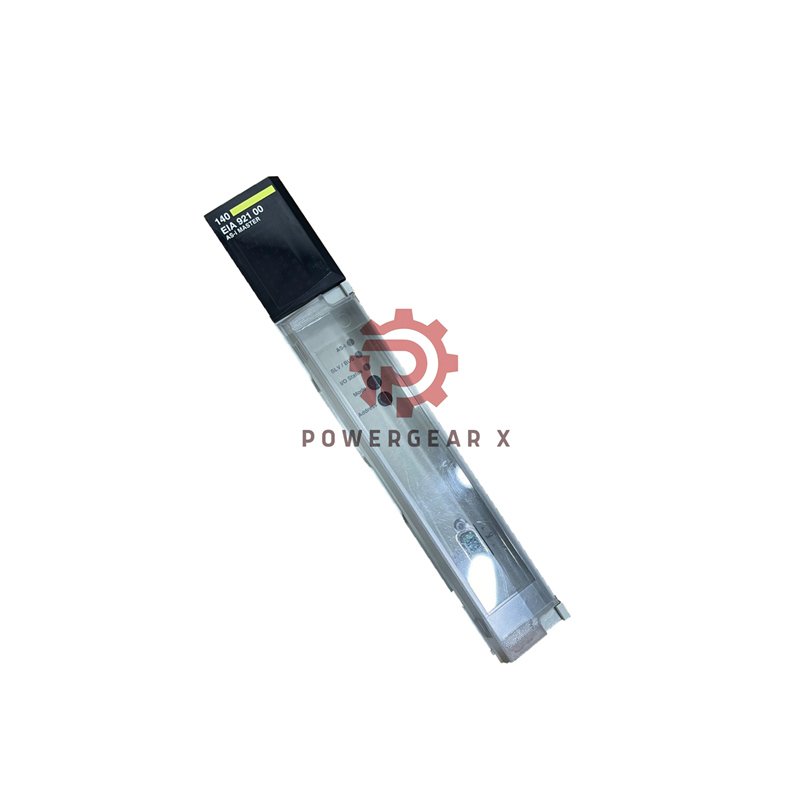

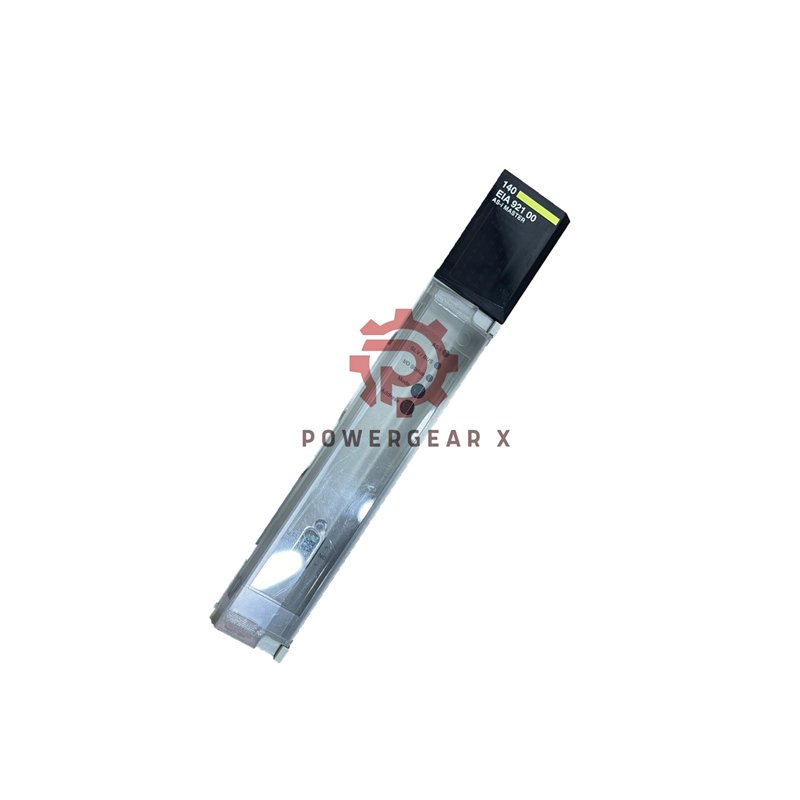

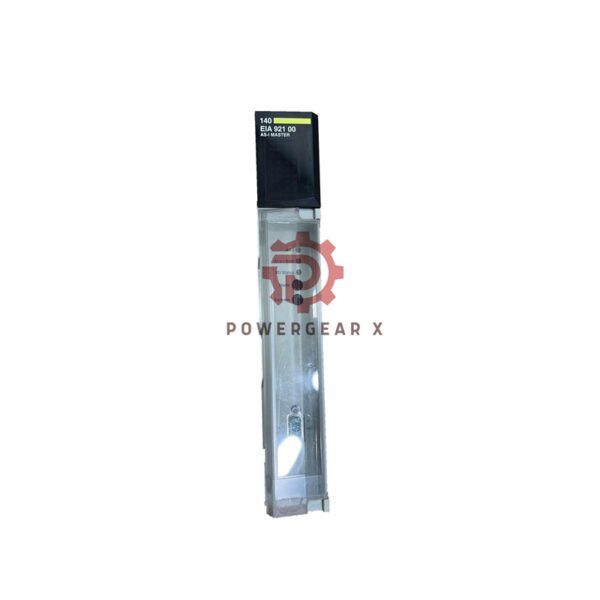

140EIA92100 AS-Interface Master Module | Modicon Quantum

Powerful AS-Interface Master for Modicon Quantum Systems

The 140EIA92100 module connects your Quantum PLC to AS-i networks. It handles 124 inputs and 124 outputs with fast 5ms cycles. This 140EIA92100 works with 30V DC power for easy installation.

📊 Technical Specifications

• Brand: Schneider Electric
• Model: 140EIA92100
• Voltage: 30V DC ±10%
• Current: 60mA typical, 100mA max
• Data Speed: 167 kbit/s
• Cable Length: 100 meters maximum
• Temperature: 0°C to 60°C operation
• Weight: 0.45 kg (0.99 lb)
• IP Rating: IP20 protection

📦 Package Includes

• 1x AS-Interface master module
• 12 months warranty
• Worldwide shipping via FedEx, UPS, DHL
• Certifications: FM, CSA, GOST, UL, C-tick

❓ Frequently Asked Questions

• Q: How many modules per PLC system?
  A: 2 for distributed drops, 4 for local/remote drops
• Q: What connectors does it use?
  A: SUB-D 3-pin male connector for AS-i link
• Q: Is the module polarity protected?
  A: Yes, internal reverse polarity protection
• Q: What is the maximum bus length?
  A: 100 meters without repeaters
• Q: How many I/O points can it handle?
  A: 124 discrete inputs and 124 discrete outputs
