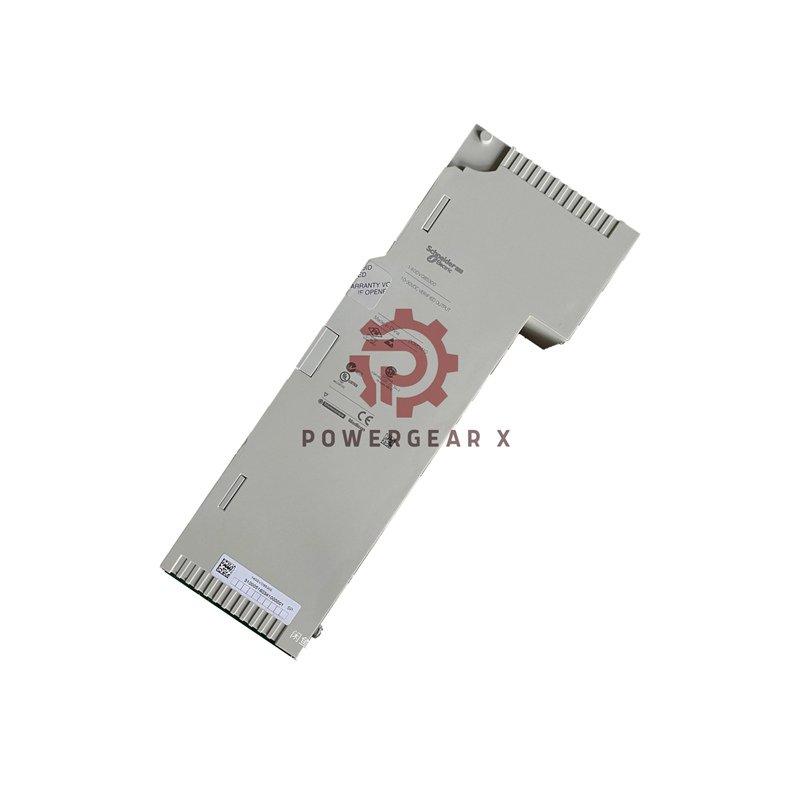

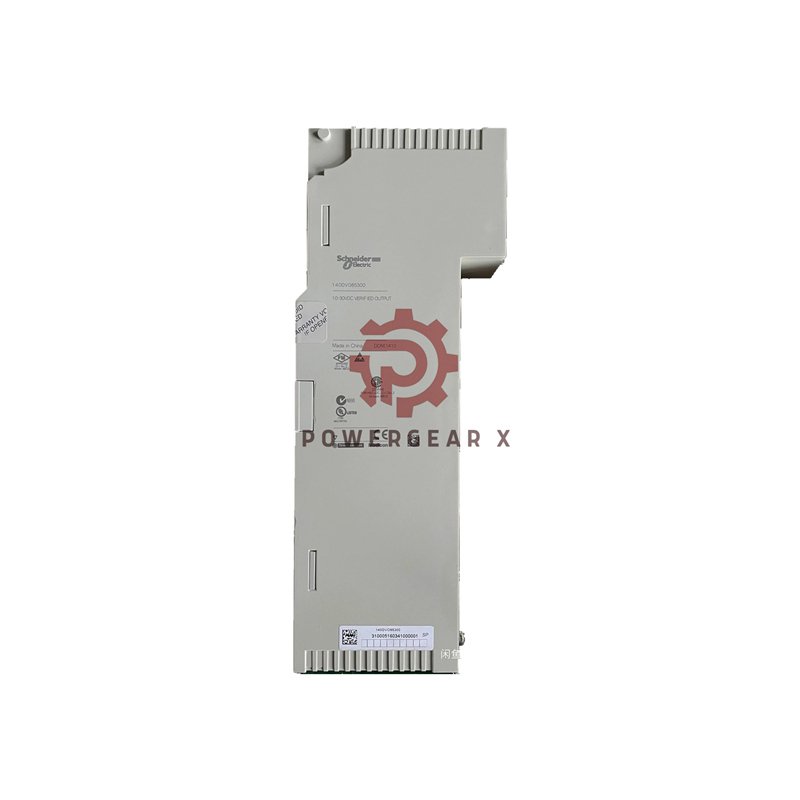

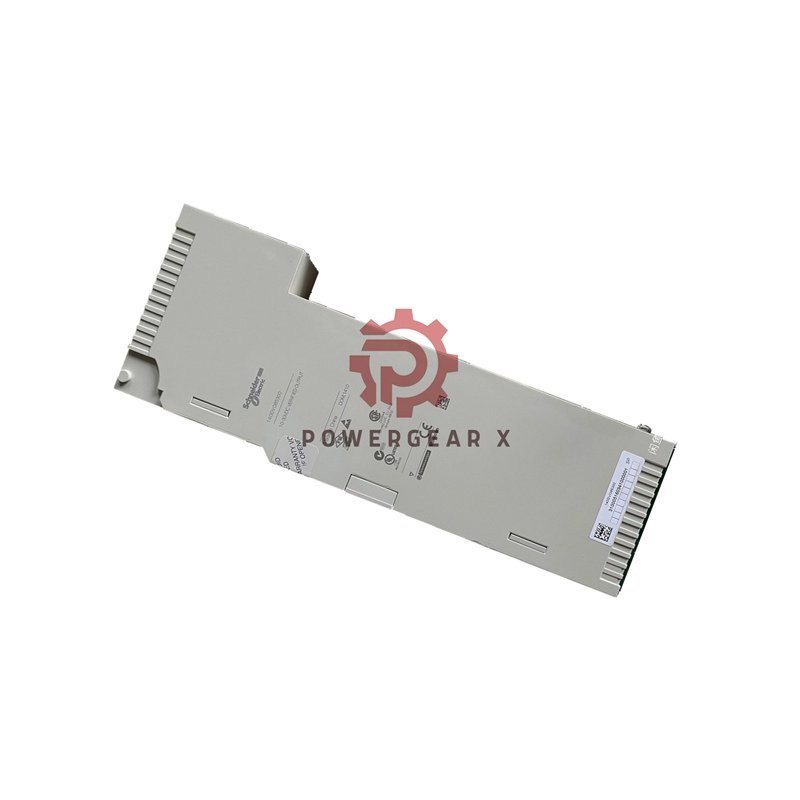

140DVO85300 Discrete Output Module – 32 Channels 10-30V DC

Schneider Electric 140DVO85300 Quantum Output Module

The 140DVO85300 from Schneider Electric’s Modicon Quantum series delivers industrial-grade performance. This 32-point discrete output module ensures reliable control in demanding automation environments.

Technical Specifications

• Output Type: 32 points, sinking logic
• Voltage Range: 10-30V DC
• Current Rating: 0.5A per point, 4A per group
• Response Time: ≤2ms (on/off)
• Protection: 5A fuse per group, surge protection
• Operating Temperature: 0°C to 60°C
• Certifications: UL 508, CSA C22.2, FM Class 1 Div 2
• Power Dissipation: 2.5W + load-dependent losses

Installation & Wiring

• Requires 2 output words and 2 input words for addressing
• Field power requirement: 10-30V DC
• Group wiring in sets of 8 points recommended
• Ensure proper grounding for noise immunity
• Maximum wire size: 2.5mm² (14 AWG)

Packaging & Shipping

• Unit package quantity: 1 module
• Dimensions: 31.2 × 16.3 × 4.5 cm (12.28″ × 6.42″ × 1.77″)
• Weight: 452 g (15.9 oz)
• Shipping options: FedEx, UPS, DHL available

Frequently Asked Questions

• What logic type does this module use? Negative (sinking) logic
• Is fuse protection included? Yes, 5A fuse per group
• What is the operating voltage range? 10-30V DC
• Can it drive inductive loads? Yes, follow manufacturer guidelines
• What diagnostics are available? LED status indicators per point
