Product details

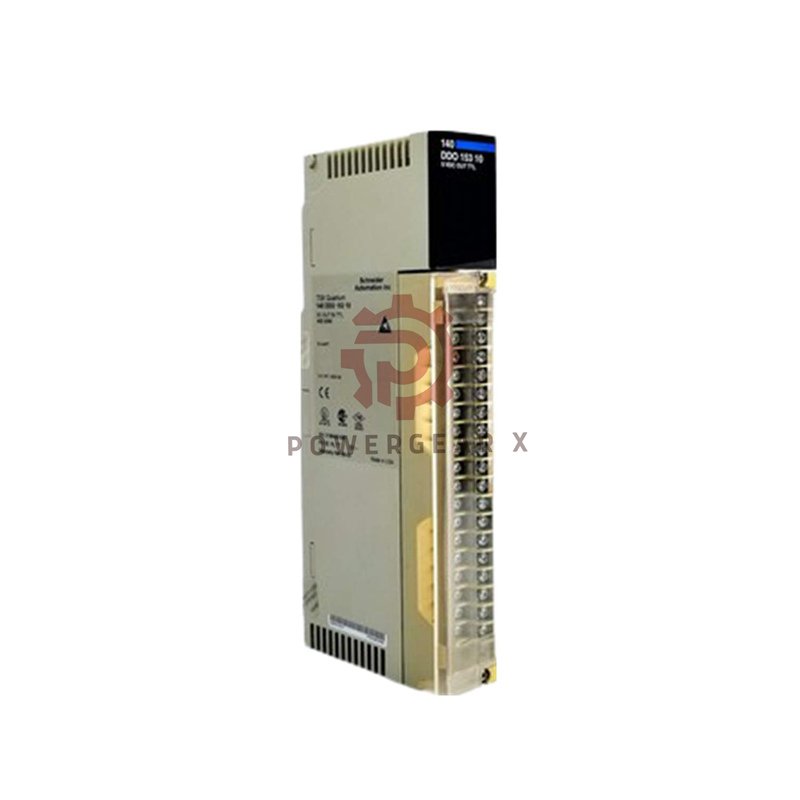

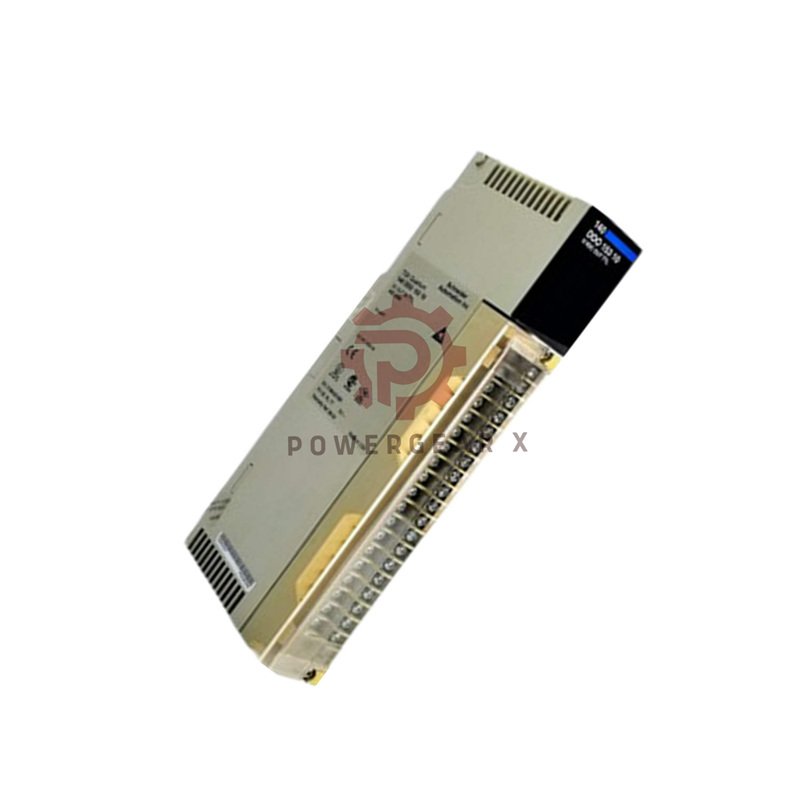

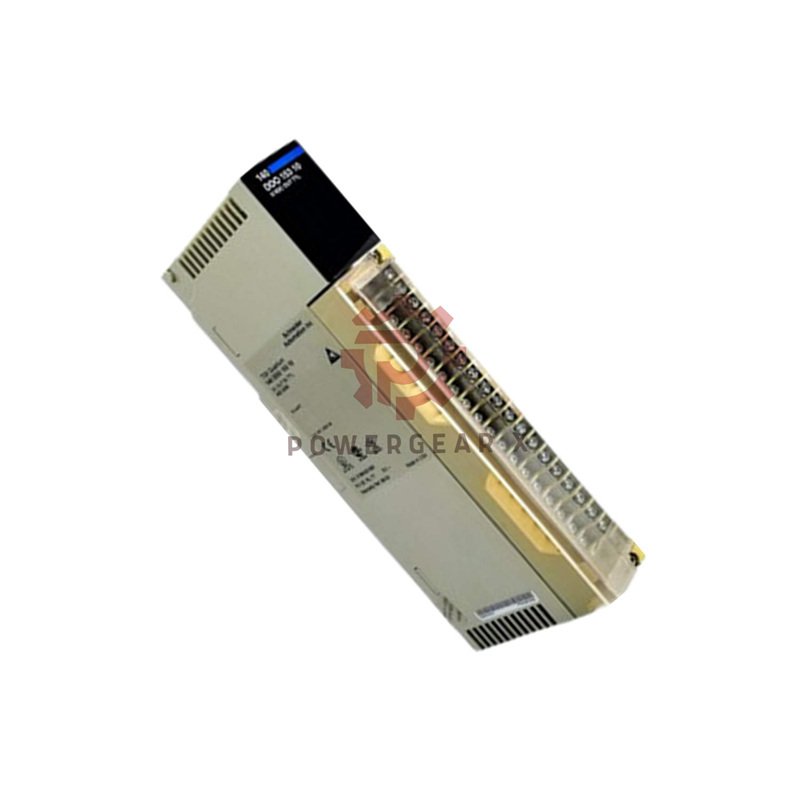

Schneider Electric 140DDO15310C TTL Discrete Output Module
- Brand: Schneider Electric
- Model: 140DDO15310C
- Series: Modicon Quantum
- Module Type: TTL Discrete Output
- Author: Powergear X Automation
Why Choose This Module
- Stable TTL signals for control tasks.
- Compact design saves rack space.
- High surge resistance.
- Long service life.
Output Performance
- Total Channels: 32 outputs
- Channel Groups: 4 groups of 8
- Signal Type: TTL positive (sink)
- Output Voltage: 5 V DC
- Logic Low Level: ≤ 0.2 V
Electrical Ratings
- Rated Supply: 4 to 5.5 V DC
- Max Point Current: 75 mA
- Max Group Current: 600 mA
- Max Module Load: 2.4 A
- Internal Pull-Up: 440 Ω
Speed & Protection
- Response Time: ≤ 250 µs
- Surge Capacity: 750 A (0.5 ms)
- Fuse-based internal protection.
- Transient voltage suppression.
Power & Bus Load
- Power Dissipation: 4 W
- Bus Current: 350 mA
- Max Supply Current: 0.4 A
Status Indication
- 32 green LEDs for output state.
- 1 green LED for bus activity.
- 1 red LED for fault alert.
Environmental Durability
- Operating temperature: 0 to 60 °C.
- Storage temperature: -40 to 85 °C.
- Humidity tolerance up to 95%.
- Conformal coated for protection.
Compliance & Safety
- Certified UL 508 and CSA.
- CE marked.
- FM Class 1 Division 2 approved.
Installation Details
- Addressing: 2 output words
- Isolation: 500 Vrms between groups
- Weight: 0.45 kg
- Module Format: Standard Quantum
Warranty & Shipping
- Warranty: 12 months
- Shipping via FedEx.
- Shipping via UPS.
- Shipping via DHL.
Professional FAQ
- Is this module suited for fast control signals?
- Yes. It switches within microseconds.
- What is a common wiring tip?
- Keep cable length short for TTL signals.
- Does it support heavy loads?
- It is best for low-voltage logic loads.
- How to reduce electrical noise?
- Use proper grounding and shielding.
- When should buyers select this model?
- Choose it for precise digital control.
