140DDM39000 16 Input 8 Output Module – Schneider Electric

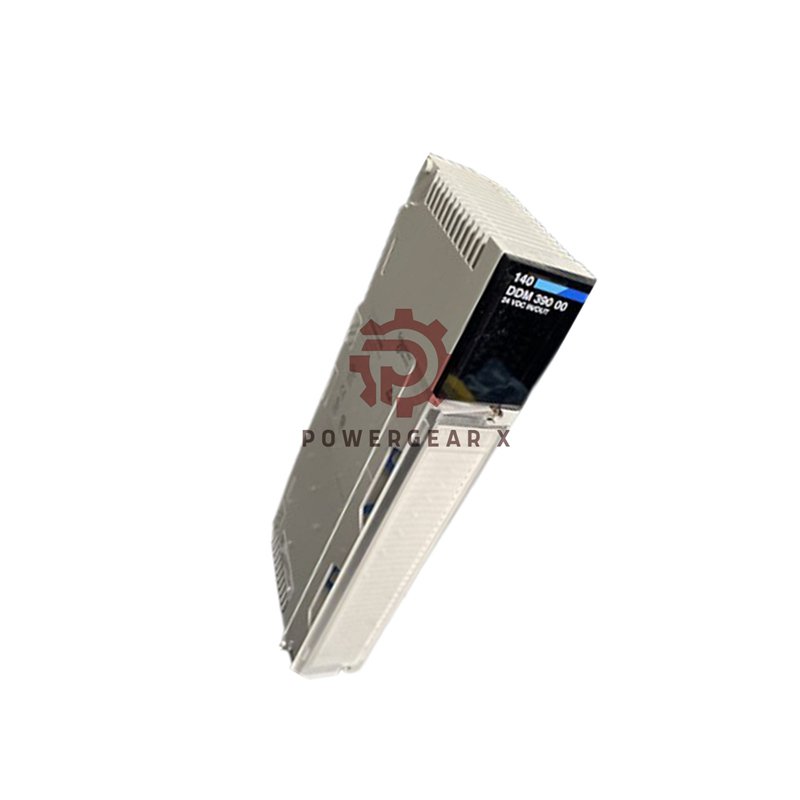

Schneider Electric 140DDM39000 – Mixed I/O Module

The 140DDM39000 combines 16 DC inputs and 8 solid-state outputs in one compact Modicon Quantum module. This mixed I/O solution offers space-saving design and reliable performance for industrial control applications.

Technical Specifications

• Brand: Schneider Electric
• Model: 140DDM39000
• Series: Modicon Quantum
• Type: Mixed Discrete I/O Module
• Input Channels: 16 DC (2 groups of 8)
• Output Channels: 8 solid-state (2 groups of 4)
• Voltage: 24V DC nominal (19.2-30V range)
• Input Current: ≥2mA (ON), ≤0.5mA (OFF)
• Output Current: 0.5A per point, 4A module total
• Response Time: ≤1ms for both inputs and outputs
• Isolation: 1780Vrms (group-bus), 500Vrms (group-group)
• Power Consumption: 1.75W + load-dependent
• Bus Current: 330mA required
• Operating Temp: 0°C to 60°C (32°F to 140°F)
• Certifications: cUL, FM Class 1 Division 2
• Warranty: 12 months

Input Specifications

• Voltage State 1: 15-30V DC guaranteed ON
• Voltage State 0: -3 to +5V DC guaranteed OFF
• Input Impedance: 2500 Ohm
• Max Voltage: 30V continuous, 56V for 1.3ms
• Logic Type: Sinking inputs
• Protection: Resistor-limited input protection

Output Specifications

• Current Rating: 0.5A per point, 2A per group
• Surge Current: 5A for 500μs per point
• Voltage Drop: <0.4V at 0.5A
• Leakage Current: 0.4mA maximum at 30V DC
• Load Inductance: 500mH maximum
• Load Capacitance: 50μF maximum
• Protection: TVS suppression, 5A fuses per group

Status Indicators

• 1 green Active LED (bus communication)
• 1 red F LED (power loss fault)
• 2 green LEDs (output status)
• 2 red LEDs (input fault detection)
• 2 red LEDs (output fault detection)
• Fuse blown indication

Protection Features

• Transient voltage suppression on outputs
• 5A fuse protection per output group
• Resistor-limited input protection
• ESD protection: 4kV contact, 8kV air
• EMI immunity: 10V/m (80-1000MHz)

Environmental Ratings

• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Humidity: 95% non-condensing
• Altitude: Up to 5000 meters
• Weight: 0.7 lb (0.3 kg)

Shipping & Packaging

• Unit Package: 1 module (12.28″ × 6.42″ × 1.77″)
• Unit Weight: 15.03 oz (426 g)
• Bulk Package: 7 modules (15.75″ × 11.81″ × 11.81″)
• Bulk Weight: 6.7 lb (3.039 kg)
• Shipping: FedEx, UPS, DHL available
• Delivery: 2-5 business days

Frequently Asked Questions

• What is the maximum output current?
  0.5A per point, 2A per group, and 4A total module current.
• Are the outputs fused?
  Yes, each output group has 5A fuse protection.
• What input voltage range is supported?
  Inputs accept -3V to +30V DC with guaranteed ON at 15-30V.
• How many status indicators are provided?
  Eight LEDs total for comprehensive status monitoring.
• Is this module suitable for harsh environments?
  Yes, it has FM Class 1 Division 2 certification for hazardous areas.
