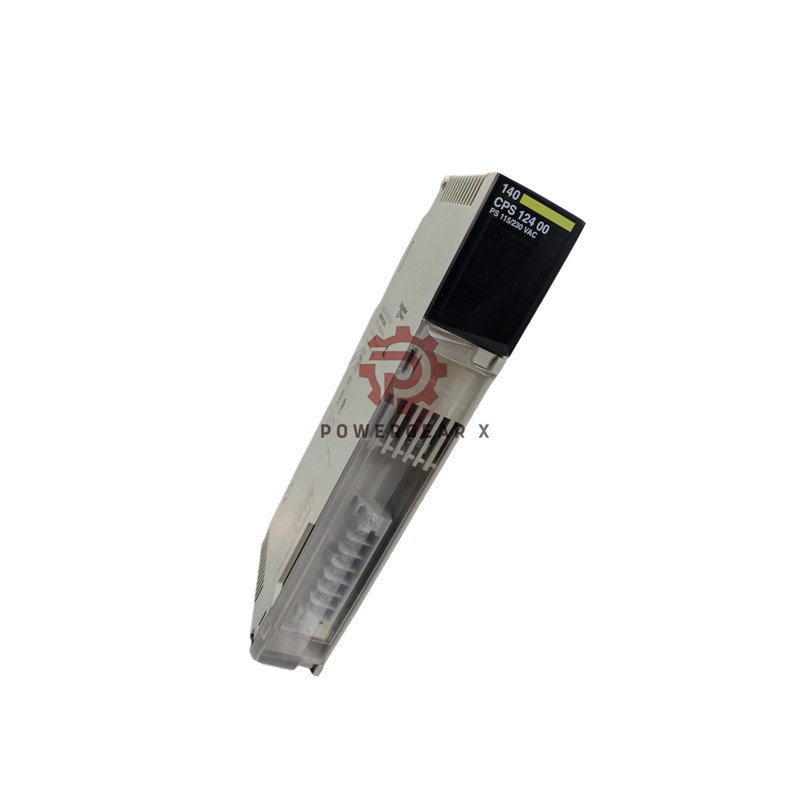

140CPS12400 AC Power Module – Schneider Electric Redundant

Schneider Electric 140CPS12400 – Redundant Power Solution

The 140CPS12400 redundant power supply ensures uninterrupted operation for critical Quantum systems. It provides backup power protection with 8A output capacity at 60°C.

Detailed Specifications

• Brand: Schneider Electric
• Model: 140CPS12400
• Series: Modicon Quantum
• Type: Redundant Power Supply
• Input Voltage: 115V AC (93-138V) / 230V AC (170-276V)
• Input Frequency: 47-63 Hz
• Output Voltage: 5.1V DC ±0.5%
• Output Current: 8A at 60°C redundant mode
• Rated Power: 130 VA
• Efficiency: 88% typical at full load
• Voltage Regulation: ±1% line and load
• Ripple Noise: <35mV peak-to-peak
• Hold-up Time: >20ms at full load
• Inrush Current: 38A at 115V, 19A at 230V
• Fuse Rating: 2A slow-blow
• MTBF: >500,000 hours at 25°C
• Operating Temp: 0°C to 60°C (32°F to 140°F)
• Safety Standards: UL 508, CSA C22.2 No 142
• Certifications: cUL, FM Class 1 Division 2
• Warranty: 12 months manufacturing defects

Package & Delivery

• Unit Package: Individual module (PCE)
• Dimensions: 12.40″ × 6.50″ × 1.97″
• Weight: 27.4 oz (778 g)
• Shipping: FedEx Priority, UPS Express, DHL Worldwide
• Handling: Standard ground shipping included

Expert Answers

• What makes this power supply redundant?
  It can operate in parallel with another unit to provide backup power if one fails.
• What is the maximum output current?
  It delivers 8A at 60°C ambient temperature in redundant configuration.
• Can it handle voltage fluctuations?
  Yes, it accepts input voltages from 93-138V AC or 170-276V AC automatically.
• Is this suitable for hazardous locations?
  Yes, it carries FM Class 1 Division 2 certification for such environments.
• How is the power status monitored?
  A green LED indicates proper operation and power availability.
