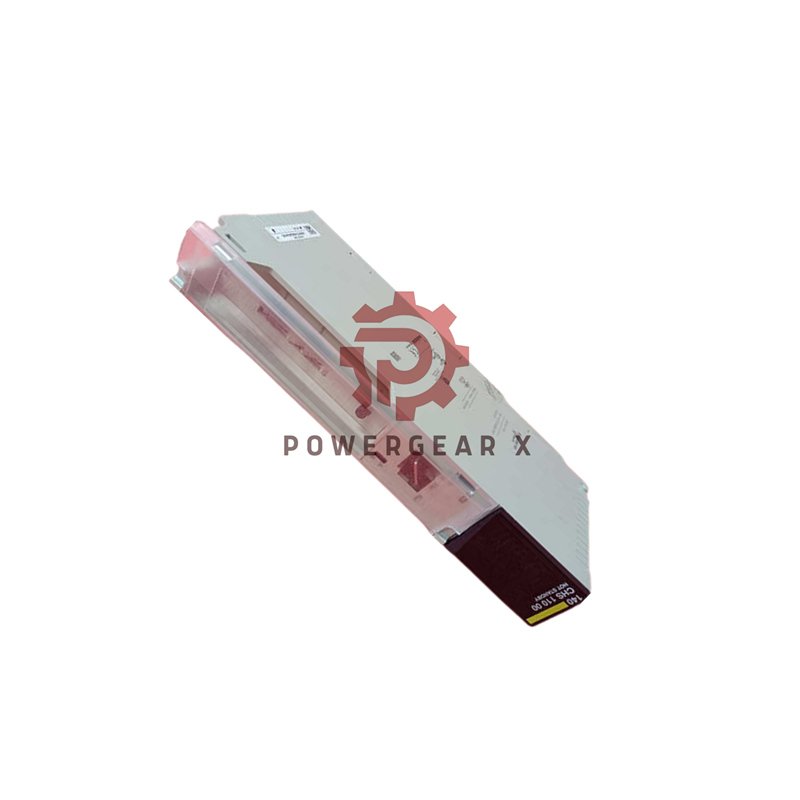

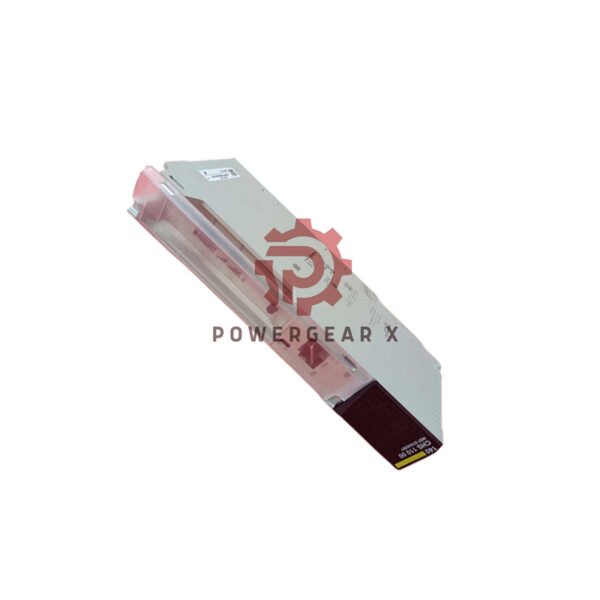

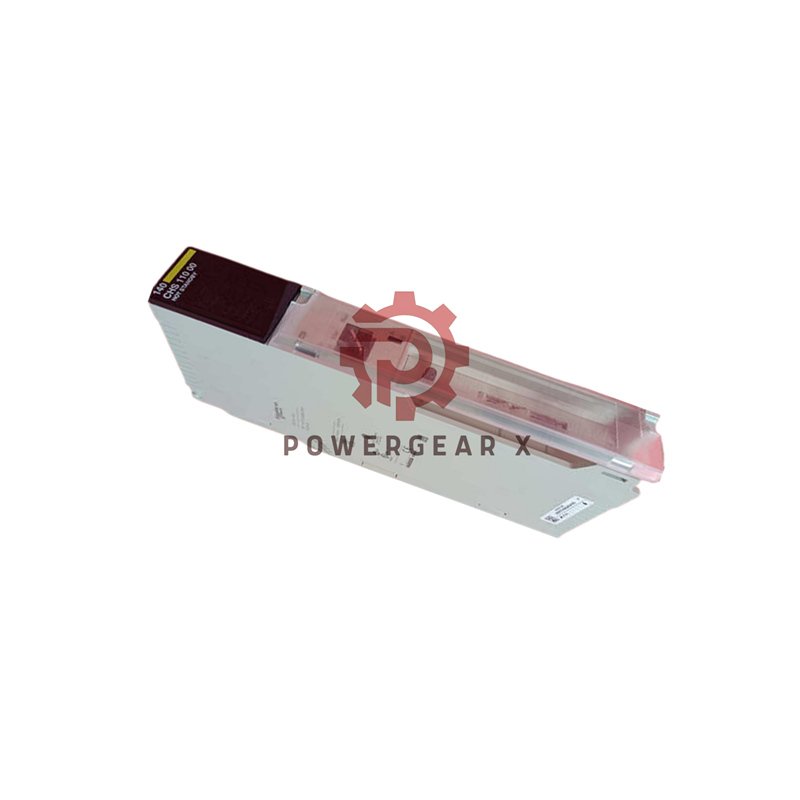

Schneider Electric 140CHS11000 – Reliable Hot Standby Solution
The 140CHS11000 hot standby module ensures continuous operation for Quantum systems. It provides automatic backup if the primary CPU fails, preventing costly downtime.
Technical Specifications
- Brand: Schneider Electric
- Model: 140CHS11000
- Product Line: Modicon Quantum
- Type: Hot Standby Module
- Switching Time: 13-48 milliseconds
- Data Rate: 10 Mbit/s
- Connection: RJ45 fiber optic connectors
- Fiber Length: 3 meters (9.8 feet)
- Power Consumption: 700 mA
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- RFI Immunity: 10 V/m (27-1000 MHz)
- ESD Protection: 8 kV air / 4 kV contact
- Operating Altitude: Up to 5000 meters
- Warranty: 12 months
Compatibility
- All legacy 140CPU with LL984 language
- 140CPU43412A/534 with IEC language
- Quantum 800 Series I/O
- Sy/Max remote I/O systems
Status Indicators
- Green: Communication with I/O module
- Green: Control process active
- Green: Module ready
- Amber: Module in standby
- Red: Communication error
Shipping & Packaging
- Unit Package: 1 piece (PCE)
- Dimensions: 12.20″ x 6.50″ x 1.97″
- Weight: 17.6 oz (500 g)
- Bulk Package: 7 pieces (S03)
- Shipping: FedEx, UPS, DHL Express
Frequently Asked Questions
- How fast is the failover switching?
The module switches in 13-48 milliseconds for seamless transition. - What communication medium does it use?
It uses fiber optic cables for reliable noise-free data transmission. - Which CPUs are compatible?
It works with legacy 140CPU and newer 140CPU43412A/534 models. - What environmental conditions does it support?
It operates in temperatures from 0°C to 60°C and up to 5000m altitude. - How is module status monitored?
Five LED indicators provide clear status information at a glance.
