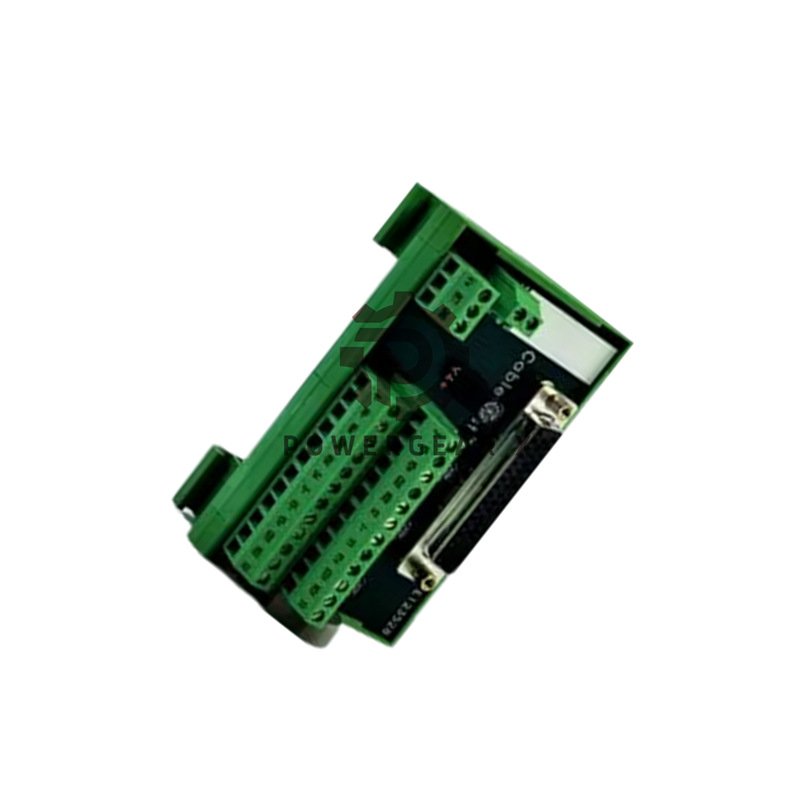

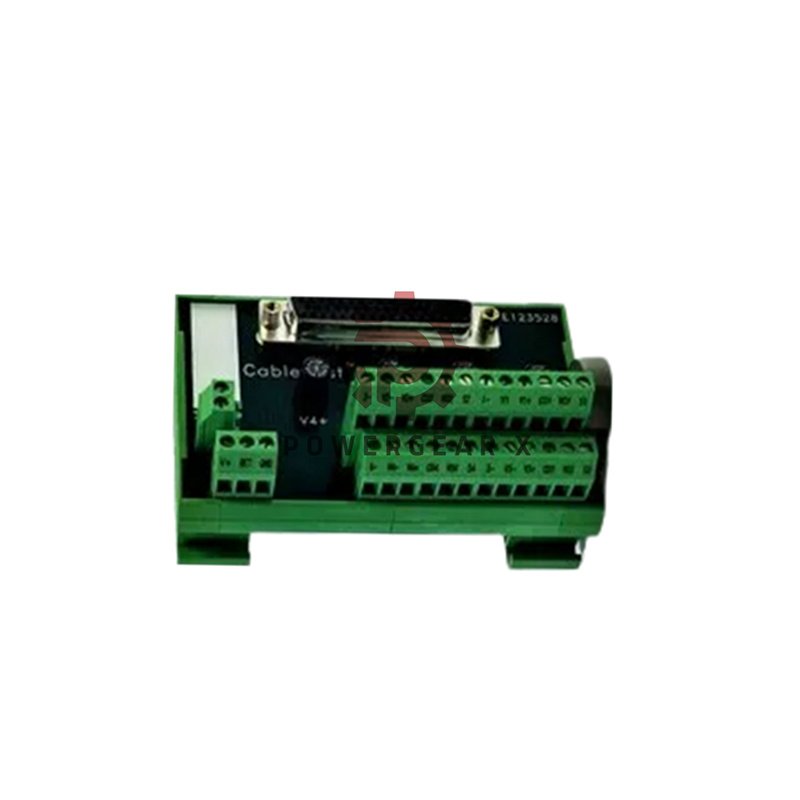

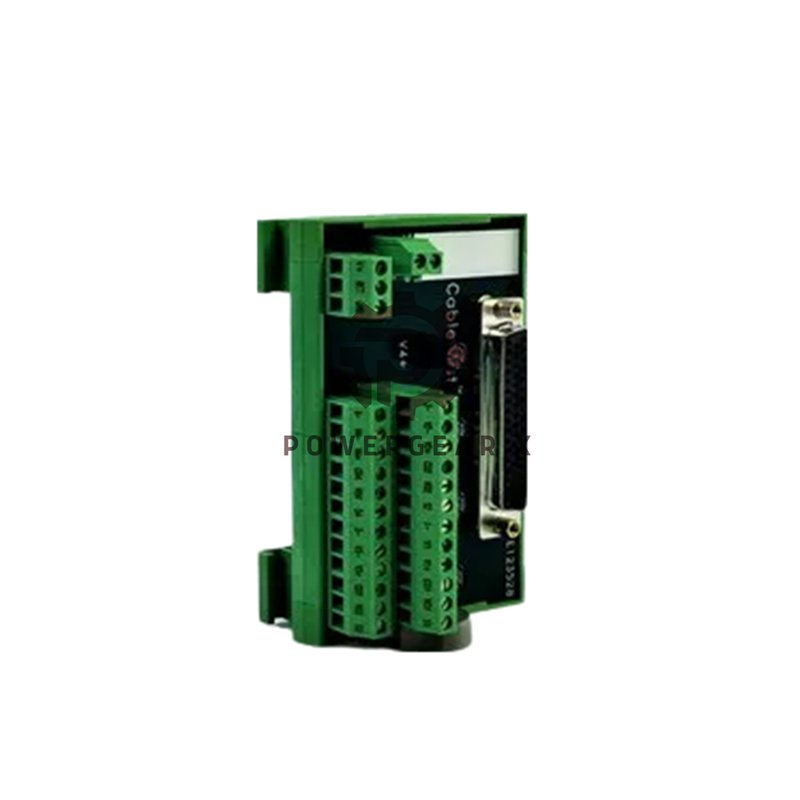

140CFK00400 Non-Fused Analog Block – Quantum Compatible

Schneider Electric 140CFK00400 – Precision Analog Connection Solution

The 140CFK00400 analog output block provides clean signal connections for sensitive Quantum analog modules. It ensures reliable performance for critical measurement applications.

Technical Specifications

• Brand: Schneider Electric
• Model: 140CFK00400
• Product Series: Modicon Quantum
• Type: Analog Output Terminal Block
• Connection Points: 4 sets (6 terminals each)
• Signal Types: Voltage/Current analog signals
• Connection: SUB-D 50 female connector
• Terminal Type: Captive screw (vibration-resistant)
• Mounting: Standard 35mm DIN rail
• Insulation Resistance: >100 MΩ at 500V DC
• Dielectric Strength: 2000V AC for 1 minute
• Operating Temperature: -20°C to +70°C
• Warranty: 12 months

Compatible Modules

• 140AVO02000 Analog Output Module
• 140ACO02000 Analog Output Module

Package Contents

• 1x 140CFK00400 Terminal Block
• Installation guide

Shipping & Delivery

• Package Dimensions: 10.43″ x 7.09″ x 4.13″
• Package Weight: 12.8 oz (363 g)
• Shipping Options: FedEx, UPS, DHL Express
• Delivery Time: 2-5 business days

Expert Answers

• Why is this block non-fused?
  Analog signals require uninterrupted paths for accuracy, making fuses unnecessary.
• What are the six terminals per point for?
  They accommodate positive, negative, shield, and power supply connections.
• Can this block handle both voltage and current signals?
  Yes, it supports both analog signal types with proper configuration.
• Is shielding important for analog signals?
  Yes, dedicated shield terminals prevent noise interference in sensitive measurements.
• How does this block handle different power configurations?
  It provides interfaces for both field power and loop power setups.
