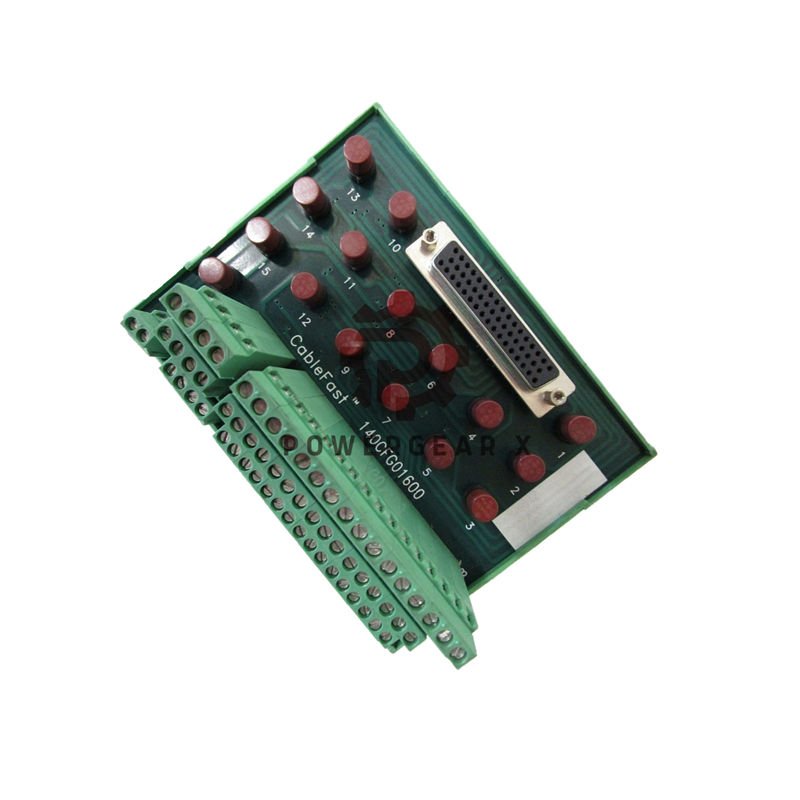

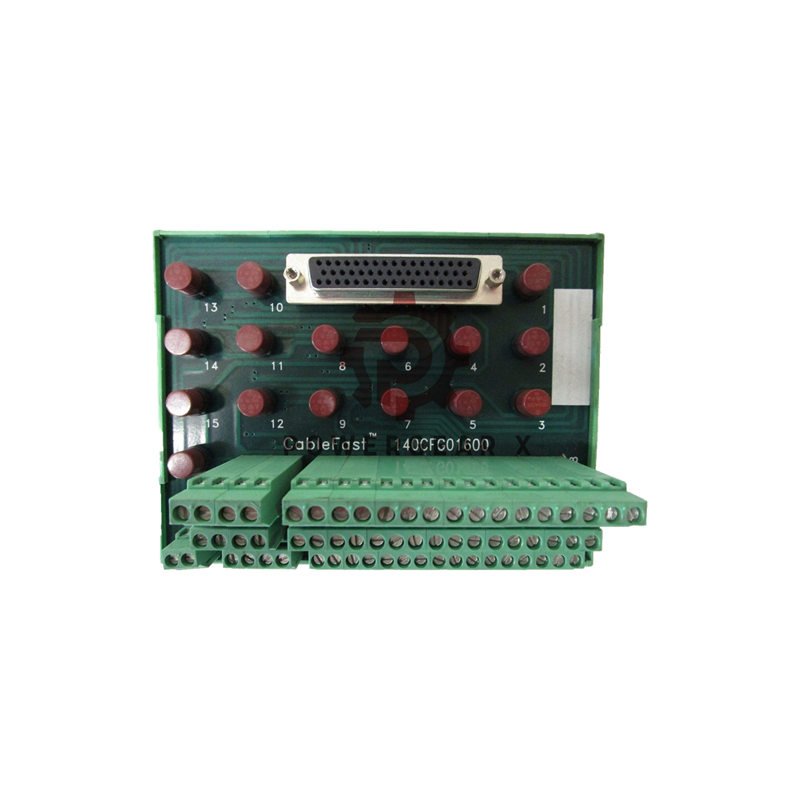

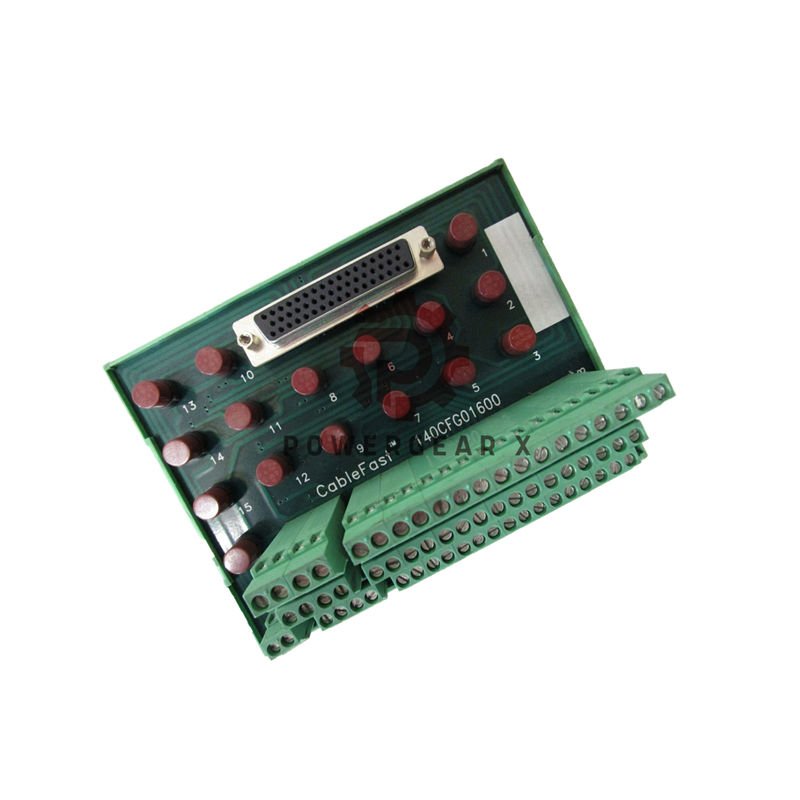

140CFG01600 Digital Output Block – Fused Protection Solution

Schneider Electric 140CFG01600 – High-Power Fused Output Terminal Block

This 140CFG01600 digital output block provides individual fused protection for Quantum modules. It offers 16-point connectivity with 4A capacity per point for safe power distribution.

Key Benefits

• Individual fuse protection for each output point
• High-power 4A capacity per channel
• Compact design saves panel space
• Easy DIN rail mounting
• Vibration-resistant captive screw terminals

Technical Details

• Brand: Schneider Electric
• Model: 140CFG01600
• Product Line: Modicon Quantum
• Type: Digital Output Terminal Block
• Number of Points: 16
• Current Rating: 4A per point
• Connection: SUB-D 50 female connector
• Terminal Type: Captive screw
• Mounting: Standard DIN rail (35mm)
• Warranty: 12 months

Compatible Modules

• 140DAI54000
• 140DAI34000
• 140DAO84010
• 140DAO84000
• 140DAI44000
• 140DAO84210
• 140DDO84300
• 140DAO84220

Package Contents

• 1x 140CFG01600 Terminal Block
• Installation documentation

Shipping Information

• Package Dimensions: 10.63″ x 7.09″ x 4.53″
• Package Weight: 19.6 oz (556 g)
• Shipping Carriers: FedEx, UPS, DHL

Common Questions

• What is the current rating per point?
  Each point supports up to 4A with individual fuse protection.
• Which Quantum modules work with this block?
  It’s compatible with several digital output modules including 140DAO84000 and 140DDO84300.
• Does this include fuses?
  Yes, it comes with fuses for each of the 16 points.
• What connector type does it use?
  It features a SUB-D 50 female connector for secure wiring.
• How is this terminal block mounted?
  It easily snaps onto standard 35mm DIN rails.
