140ATI03000 Thermocouple Input Module | Modicon Quantum

High-Precision Temperature Monitoring with Schneider Electric 140ATI03000

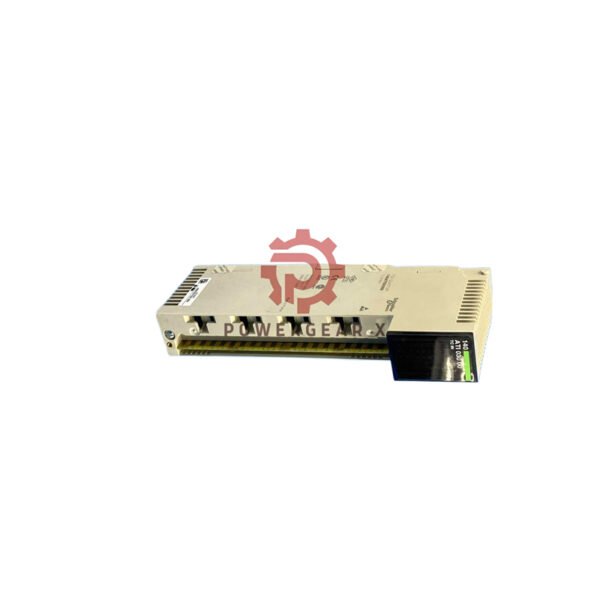

The Schneider Electric 140ATI03000 is an advanced thermocouple input module for Modicon Quantum systems. It provides accurate temperature measurement across eight channels with exceptional reliability. This module is perfect for industrial processes requiring precise thermal monitoring.

Complete Technical Specifications

• Brand & Model: Schneider Electric 140ATI03000
• Input Channels: 8 independent thermocouple inputs
• Supported Types: J, E, K, T, R, S thermocouples
• Resolution: 16-bit high precision
• Accuracy: ±2°C + 0.1% of reading (Types J, E, K, T)
• Isolation: 1780V AC between channels and bus
• Update Time: 1000ms refresh rate
• Power Consumption: 280mA bus current, 1.5W dissipation
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Certifications: cUL, FM Class 1 Div 2, CE
• EMC Immunity: 10V/m at 80-1000MHz per IEC 801-3
• Weight: 0.3kg (0.7lb)

Package & Shipping Information

• Includes one (1) 140ATI03000 thermocouple input module
• Backed by 12-month warranty against defects
• Shipped worldwide via FedEx, UPS, or DHL for reliable delivery
• Package dimensions: 31.5 × 16.5 × 5.0 cm (12.4 × 6.5 × 1.97 inches)
• Package weight: 425 grams (14.99 ounces)

Frequently Asked Questions

• Q: What thermocouple types does this module support?
  A: It supports J, E, K, T, R, and S type thermocouples for various applications.
• Q: What is the temperature range for type K thermocouples?
  A: Type K thermocouples measure from -270°C to +1370°C with this module.
• Q: How many temperature inputs can this module handle?
  A: It provides eight independent thermocouple input channels.
• Q: Is this module suitable for hazardous locations?
  A: Yes, it’s FM certified for Class 1 Division 2 hazardous environments.
• Q: What is the resolution of the temperature measurements?
  A: The module provides 16-bit resolution for high-precision temperature readings.
