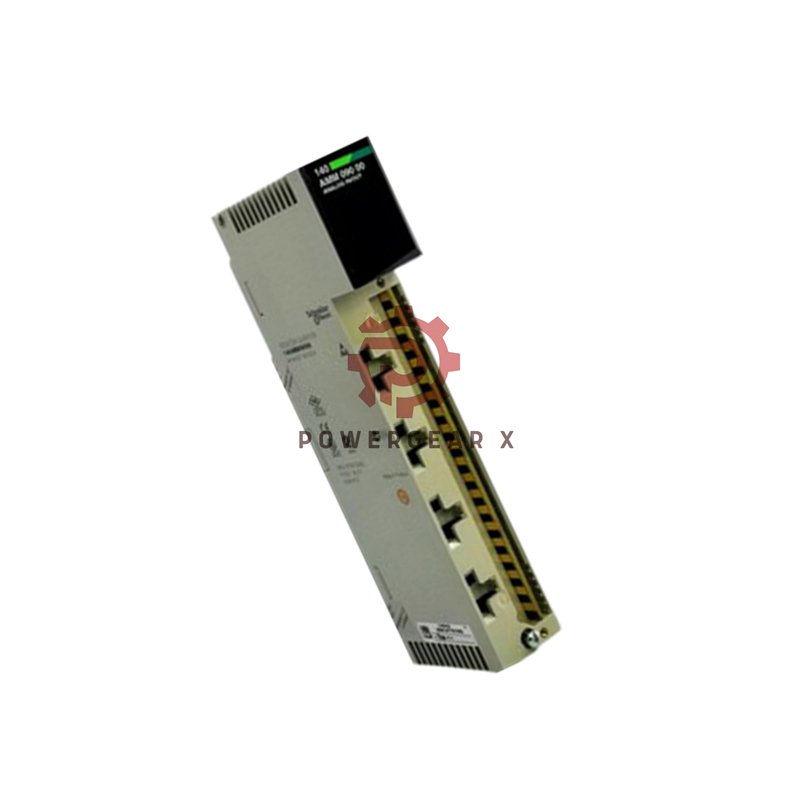

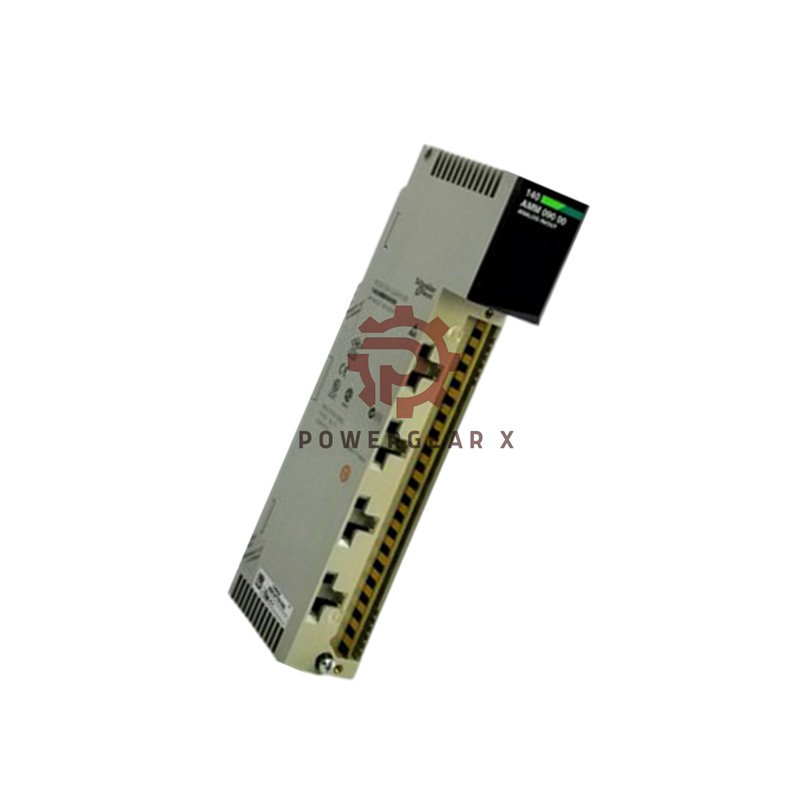

140AMM09000 Modicon Quantum Analog I/O Module

Schneider Electric 140AMM09000 Analog Mixed Module

The 140AMM09000 is a versatile analog input/output module for Modicon Quantum systems. It provides both reading and control capabilities in one compact unit. This module is ideal for complex automation applications requiring precise signal handling.

Detailed Specifications

• Model: Schneider Electric 140AMM09000
• Input Channels: 4 analog inputs (multiple ranges)
• Output Channels: 2 analog outputs (4-20mA)
• Input Resolution: Up to 16-bit depending on range
• Output Resolution: 12-bit precision
• Update Time: 15ms (output), 320ms (input)
• Isolation: 500V AC between channels and bus
• Power Consumption: 350mA bus current
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Weight: 0.3 kg (0.7 lb)
• Certifications: UL 508, CSA C22.2, FM Class 1 Division 2
• Shipping: 461g package via FedEx, UPS, DHL
• Warranty: 12 months

Input Signal Ranges

• Voltage: ±10V, ±5V, 0-10V, 0-5V, 1-5V
• Current: ±20mA, 0-20mA, 4-20mA
• Maximum Input: ±50V voltage, ±25mA current
• Input Impedance: >10MΩ (voltage), >250Ω (current)

Output Capabilities

• Output Range: 4-20mA standard
• Loop Voltage: 0-60V DC with external resistance
• Setting Time: 900µs to ±0.1% of final value
• Accuracy: ±0.004% of full scale

Frequently Asked Questions

• What types of signals can this module handle?
  It supports both voltage and current signals in multiple ranges including ±10V, 0-20mA, and 4-20mA.
• How many input and output channels does it have?
  The module provides 4 analog input channels and 2 analog output channels.
• What is the resolution of the analog inputs?
  Input resolution ranges from 14-bit to 16-bit depending on the signal type.
• Is the module suitable for harsh environments?
  Yes, it operates in temperatures from 0°C to 60°C and has industrial certifications.
• What isolation protection does it offer?
  It provides 500V AC isolation between channels and the system bus.
