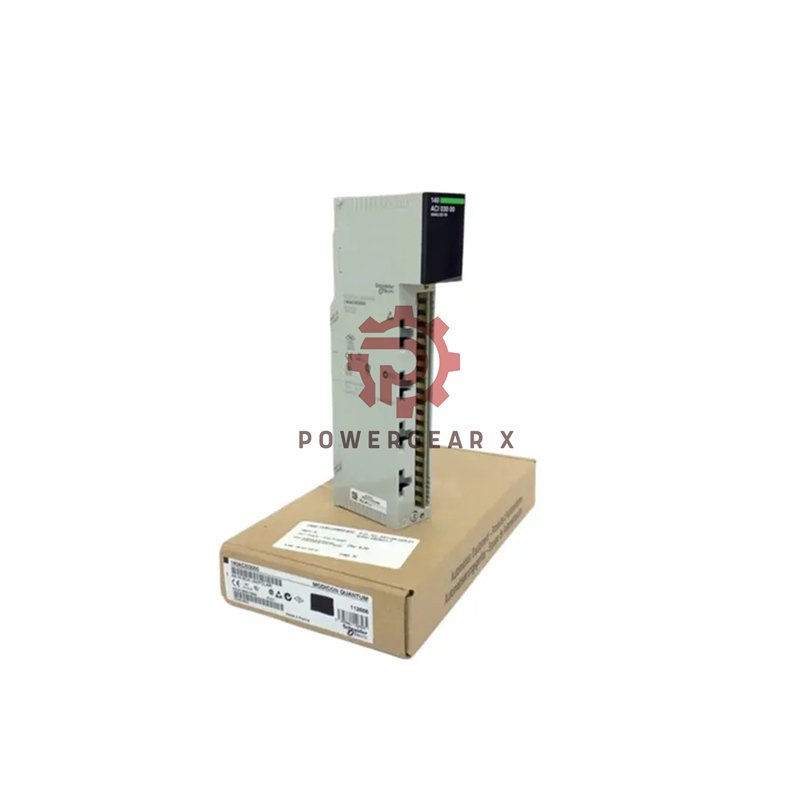

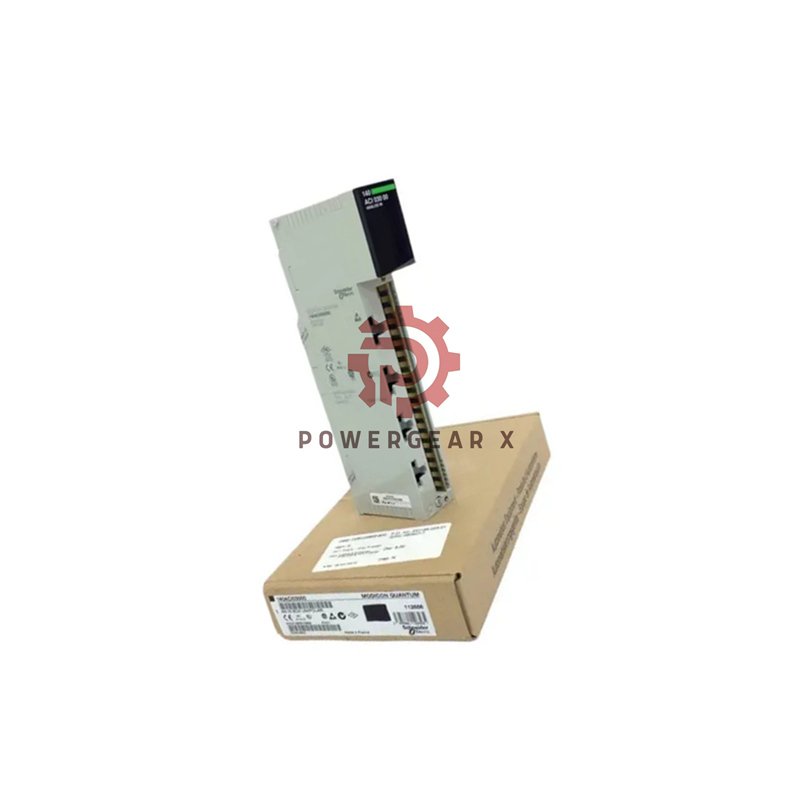

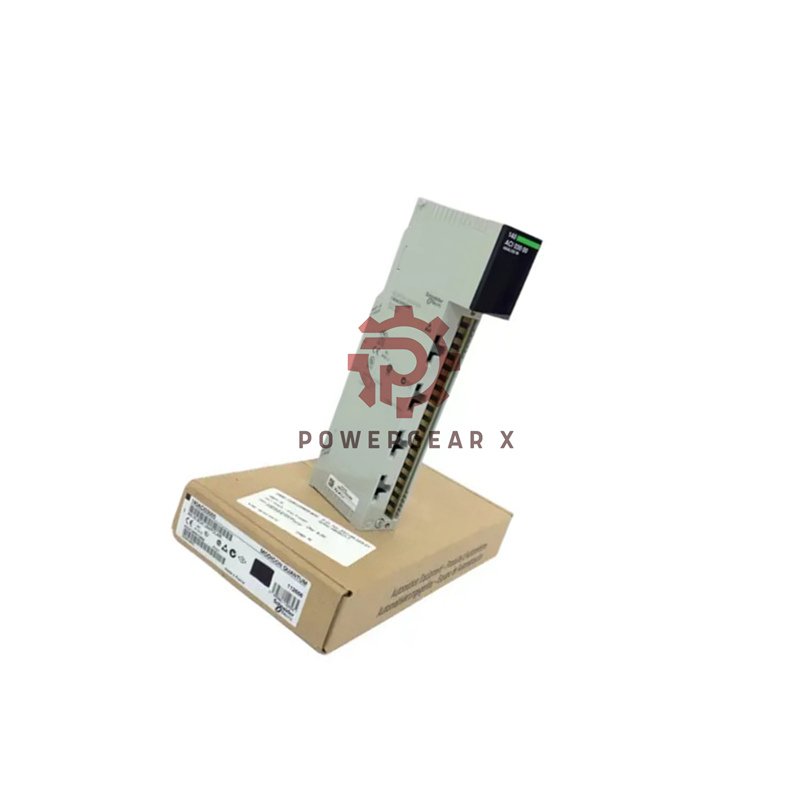

Schneider Electric 140ACI03000 Modicon Quantum Analog Input Module
The 140ACI03000 is a high-performance analog input module for Modicon Quantum systems. It offers 8 channels with excellent accuracy and reliability. This module is perfect for industrial automation and process control applications.
Technical Specifications
- Model: Schneider Electric 140ACI03000
- Input Channels: 8 differential inputs
- Resolution: 12-bit high precision
- Input Ranges: 1-5V DC, 4-20mA
- Update Time: 5ms fast response
- Accuracy: ±0.05% of full scale
- Isolation: 1000V DC channel-to-bus isolation
- Input Impedance: >20MΩ (voltage), 250Ω (current)
- Power Consumption: 240mA bus current, 2W dissipation
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Certifications: UL 508, CSA C22.2, FM Class 1 Division 2
- Weight: 0.3 kg (0.7 lb)
- Shipping: 450g package via FedEx, UPS, DHL
- Warranty: 12 months
Common Questions
- What input signals does this module support?
It accepts both 1-5V DC voltage and 4-20mA current signals. - How many channels are available?
There are 8 fully isolated differential input channels. - What is the resolution of the analog inputs?
It provides 12-bit resolution for high precision measurements. - Does it include diagnostic features?
Yes, it has LED indicators for channel status and fault detection. - What safety certifications does it have?
It is UL 508, CSA C22.2, and FM Class 1 Division 2 certified.
