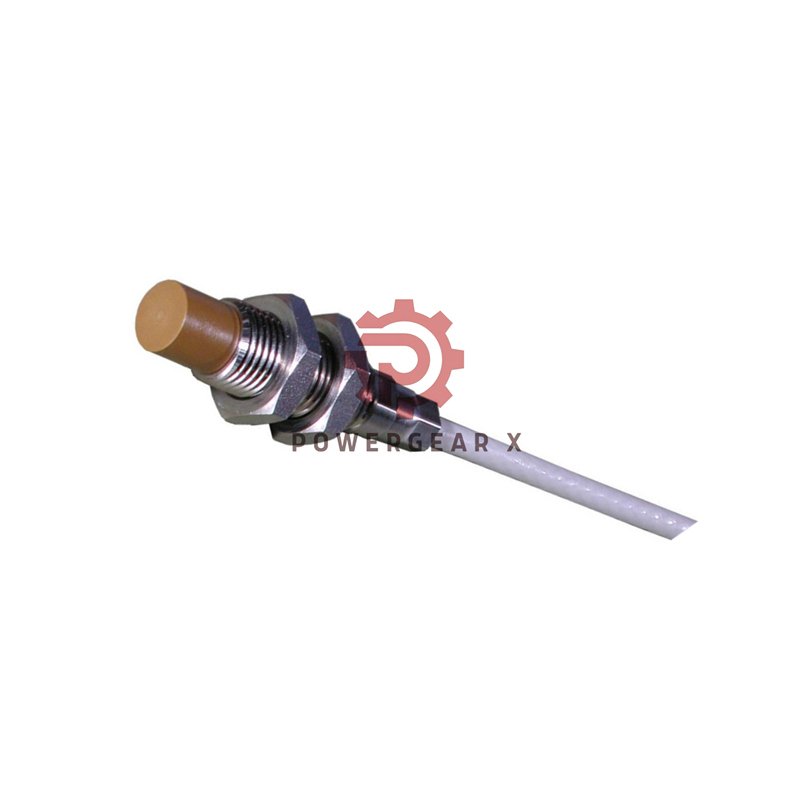

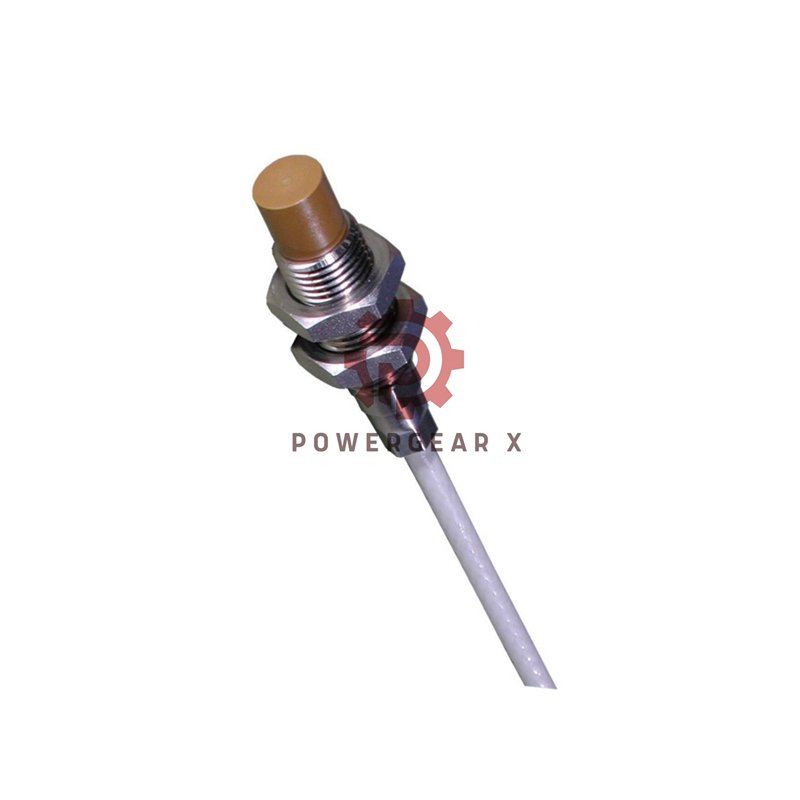

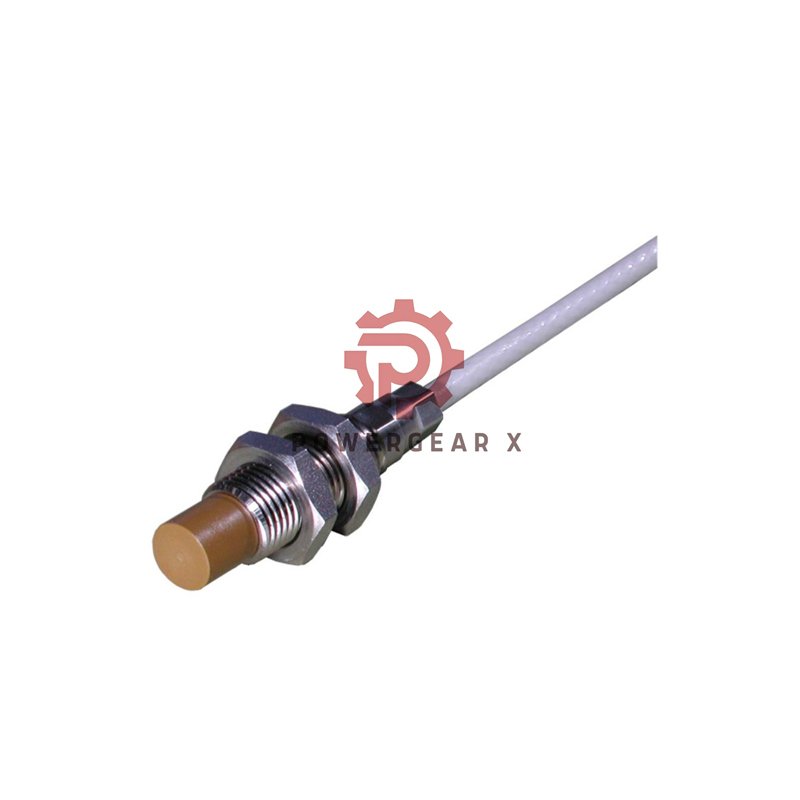

Meggitt Vibro-Meter 111-403-000-013 Proximity Measuring System
Manufacturer: Meggitt (Vibro-Meter)
Product Type: Proximity Measuring System
Product No.: 111-403-000-013-A1-B1-C086-D000-E050-F0-G000-H05
- Environment (A): 1 = Standard
- Body Thread (B): 1 = M10 × 1
- Body Length (C): 086 = 86 mm
- Unthreaded Length (D): 000 = 0 mm
- Integral Cable (E): 050 = 5.0 m ±500 mm
- Protection (F): 0 = None
- Hose Length (G): 000 = None
- Total System Length (H): 05 = 5 m
Weight: 0.22 kg
Key Benefits
- Non-contact eddy-current system with high accuracy
- Certified for hazardous zones (Ex certified)
- API 670 compliant for machinery protection
- Fast frequency response: DC to 20 kHz (-3 dB)
- Wide temperature range: -40°C to +180°C
- Voltage or current output with short-circuit protection
- Temperature-compensated design for stability
- System length options: 1m / 5m / 10m
- Robust AISI 316L stainless steel housing
- Warranty: 12 Months
Technical Data
- Transducer Input: IQS900 signal conditioner required
- Frequency Range: DC–20 kHz
- Measurement Range: 2 mm or 4 mm
- Vibration Resistance: 5 g peak (10–500 Hz)
- Shock Resistance: 15 g peak, 11 ms
- Protection: IP68 (IEC 60529)
- Operating Temp: -40°C to +180°C
- Short-Term Survival: +220°C
- Cable Material: FEP, Ø3.6 mm, 70 Ω coaxial
- Connector: Self-locking miniature coaxial
- Shipping Options: FedEx, UPS, DHL
Applications
- Shaft vibration and gap monitoring
- Condition monitoring for turbines and compressors
- Use with VM600Mk2 / VibroSmart® systems
- Industrial machinery protection systems
- API 670 compliant setups
Optional Protection
- Flexible Hose: Stainless steel mechanical shield
- FEP Sheath: Chemical resistant, low permeability
FAQ
- Q1: What makes the 111-403-000-013 unique?
- A1:It offers API 670 compliance, IP68 protection, and high accuracy for vibration monitoring.
- Q2: Can it be used in hazardous areas?
- A2:Yes, Ex certified versions are available for explosive environments.
- Q3: What is the working temperature range?
- A3:-40°C to +180°C for standard use; short-term up to +220°C.
- Q4: Is the cable replaceable?
- A4:No, it’s integral with factory-specified length for stable calibration.
- Q5: How is the item shipped?
- A5:Orders are shipped via FedEx, UPS, or DHL globally.
