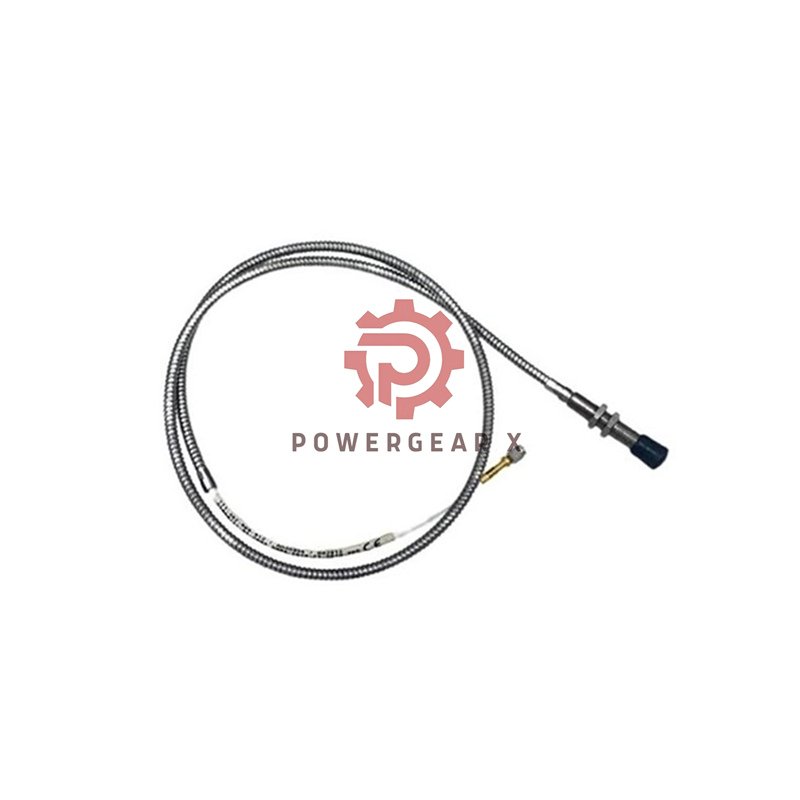

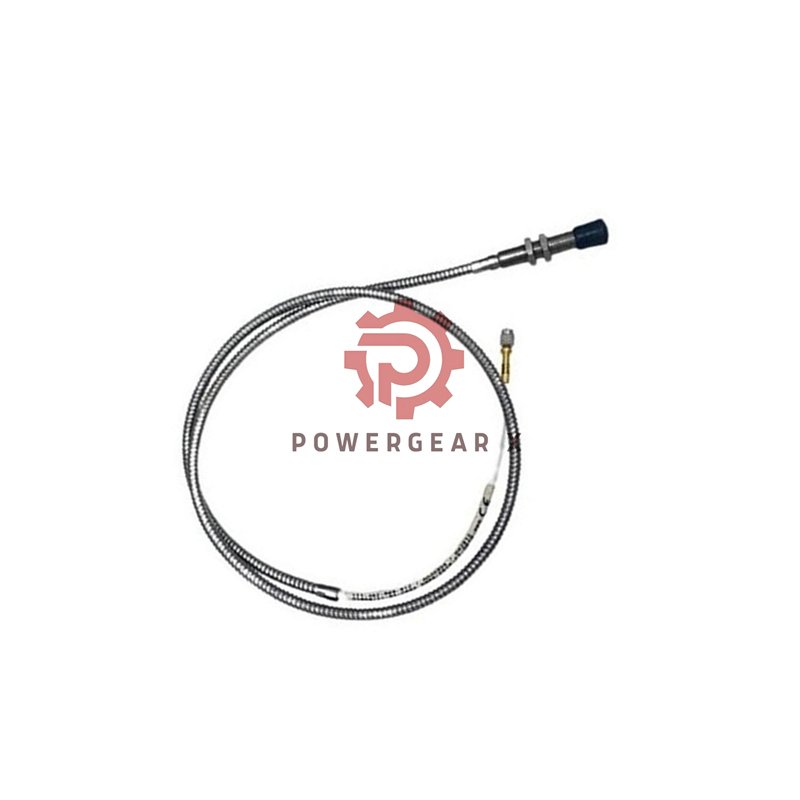

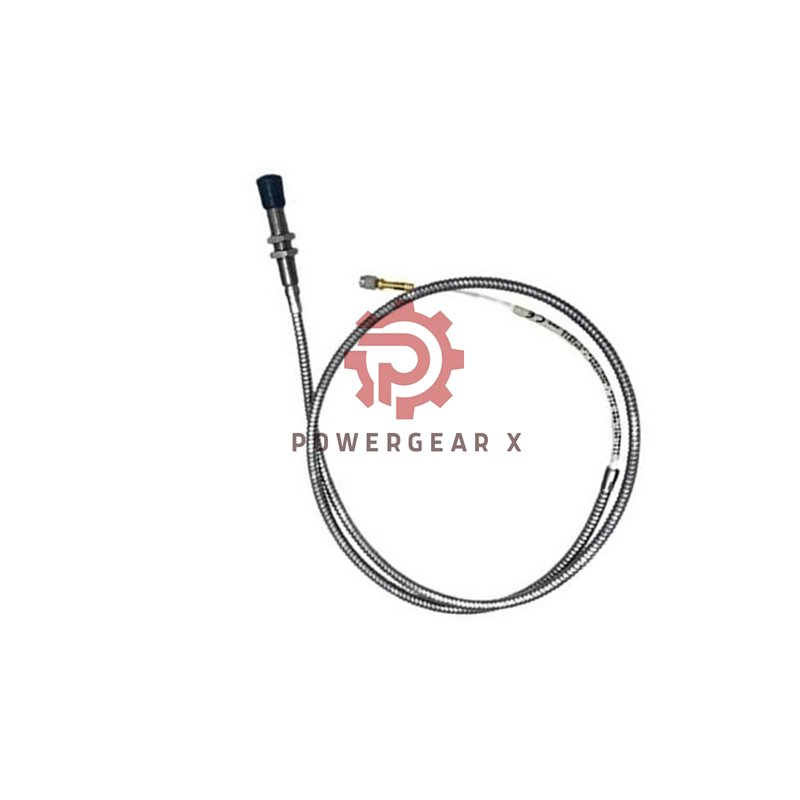

Meggitt Vibro-Meter 111-402-000-013 Proximity Sensor
The 111-402-000-013-A1-B1-C165-D080-E050-F0-G000-H05 measures vibration and position without contact. It works in tough conditions from -40 to +180°C. This sensor fits API 670 standards and hazardous areas.
Main Features
- Eddy-current principle for accurate non-contact measurement
- Ex certification safe for explosive atmospheres
- Wide frequency response from DC to 20 kHz
- Temperature compensation for stable performance
- Short circuit protection on voltage or current output
- Stainless steel body with high-temperature epoxy
- IP68 rating for dust and water resistance
Technical Specifications
- Brand: Meggitt (Vibro-Meter)
- Model: 111-402-000-013
- Type: Proximity Measuring System
- Measurement Range: 2 mm or 4 mm
- Frequency Response: DC to 20 kHz (-3 dB)
- Temperature Range: -40°C to +180°C
- Body Thread: M10 × 1
- Body Length: 165 mm
- Unthreaded Length: 80 mm
- Cable Length: 5.0 meters
- Protection: IP68 on transducer tip and cable
- Vibration Resistance: 5 g peak (10-500 Hz)
- Shock Resistance: 15 g peak (11 ms)
- Weight: 0.22 kg
- Warranty: 12 months
111-402-000-013-A1-B1-C165-D080-E050-F0-G000-H05 Suffix Breakdown
- Base Model: 111-402-000-013
- Environment (A1): Standard
- Body Thread (B1): M10 × 1
- Body Length (C165): 165 mm
- Unthreaded Length (D080): 80 mm
- Cable Length (E050): 5.0 m
- Optional Protection (F0): None
- Flexible Hose (G000): None
- Total System Length (H05): 5 m
Environmental Durability
- Operates from -40°C to +180°C with minimal drift
- Survives short-term exposure up to +220°C
- IP68 rating ensures protection in wet conditions
- Resists vibrations up to 5 g and shocks up to 15 g
- FEP cable covering resists chemicals and moisture
Installation and Usage
- Mount using M10 × 1 thread for secure placement
- Hand-tighten connectors until they lock firmly
- Align sensor properly with the target surface
- Use with IQS900 signal conditioner for power
- Check cable length matches your setup needs
Shipping and Support
- Package Includes: Sensor, cable, and connectors
- Shipping Options: FedEx, UPS, DHL
- Warranty Coverage: 12 months from purchase
- Contact: sales@powergearx.com or +86 18030005825
Frequently Asked Questions
- How do I install this proximity sensor?
Mount it with the M10 × 1 thread and hand-tighten the connectors.
- What industries use this sensor?
It is ideal for machinery protection in oil, gas, and power plants.
- Can it handle high-vibration environments?
Yes, it resists vibrations up to 5 g between 10 and 500 Hz.
- What is the warranty period?
The product comes with a 12-month warranty against defects.
- How do I extend the system cable?
Use compatible extensions with self-locking coaxial connectors.
For inquiries, email sales@powergearx.com or call +86 18030005825.
