11 mm Proximity Probe – 330708-00-10-90-01-00 | Bently Nevada

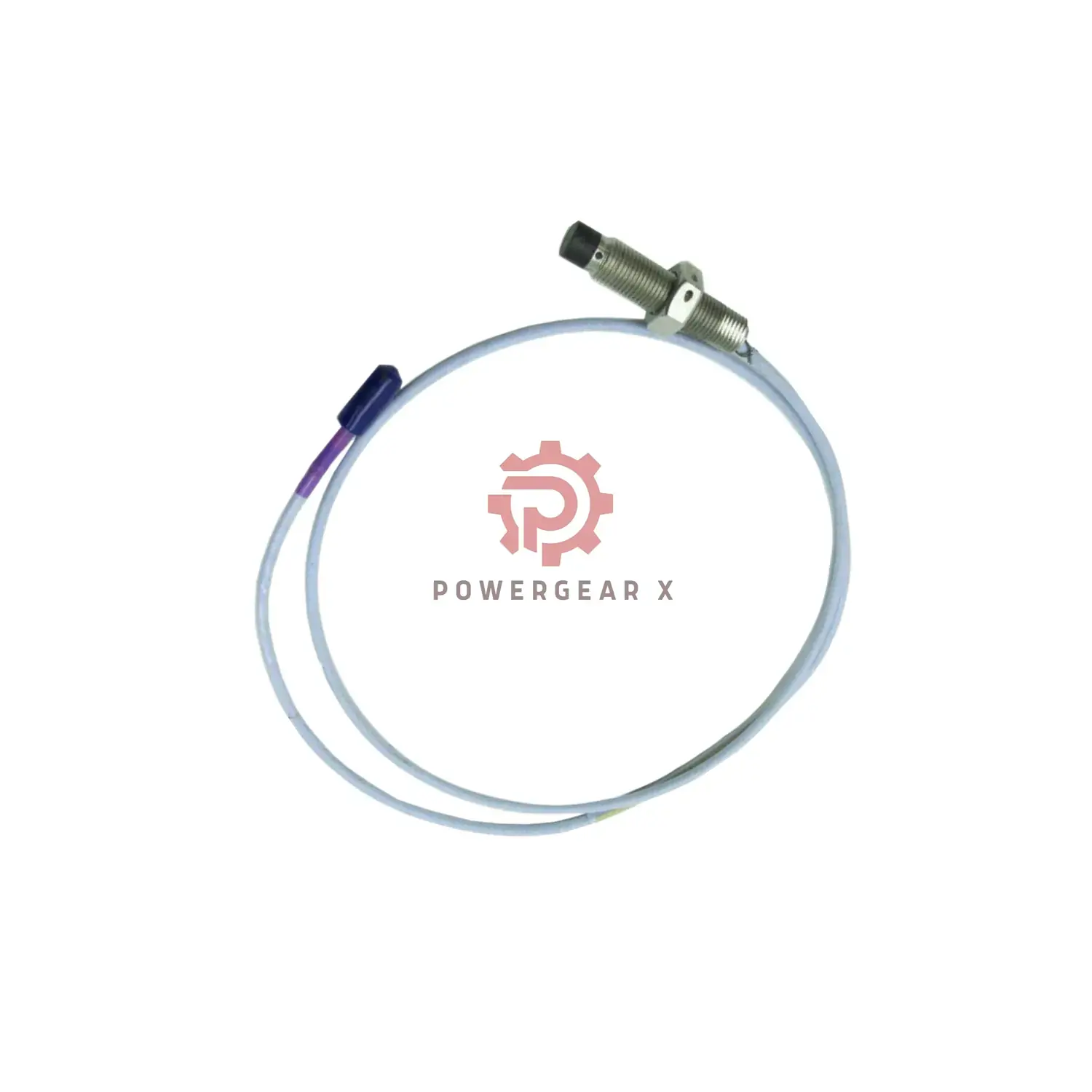

Bently Nevada 330708-00-10-90-01-00 3300 XL 11 mm Proximity Probe

Model Breakdown

• 330708: 11 mm probe, 5/8-18 UNF thread, no armor
• 00: No unthreaded length
• 10: Case length 1.0 inch
• 90: Cable length 9.0 meters (29.5 feet)
• 01: Mini coax ClickLoc connector with protector, standard cable
• 00: No agency approval required

Technical Specifications

• Probe tip: Polyphenylene sulfide (PPS)
• Probe case: Stainless steel (AISI 304)
• Cable: 75 Ω triaxial, FEP insulated
• Resistance (1m length): 5.9 ± 0.5 ohms
• Operating temperature: -52°C to +177°C (-62°F to +351°F)
• Storage temperature: -52°C to +177°C (-62°F to +351°F)
• Minimum cable bend radius: 25.4 mm (1 inch)
• Shipping weight: 0.17 kg

Thread and Torque (330708-00-10-90-01-00)

• Thread type: 5/8-18 UNF, max engagement 0.938 inch
• Optional threads: M16x1.5 (24 mm max), M14x1.5 (21 mm max)
• Max torque: 45.2 N·m (400 in·lb)
• Recommended torque: 15.2 N·m (133 in·lb)
• Connector torque: Finger tight, max 0.565 N·m (5 in·lb)

Installation Tips

• Do not overtighten to avoid damage
• Maintain cable bend radius over 25.4 mm
• Do not expose probe to below -34°C (30°F) to protect seal

Package Contents & Warranty

• Probe included, certificate optional
• 12-month warranty
