Overview

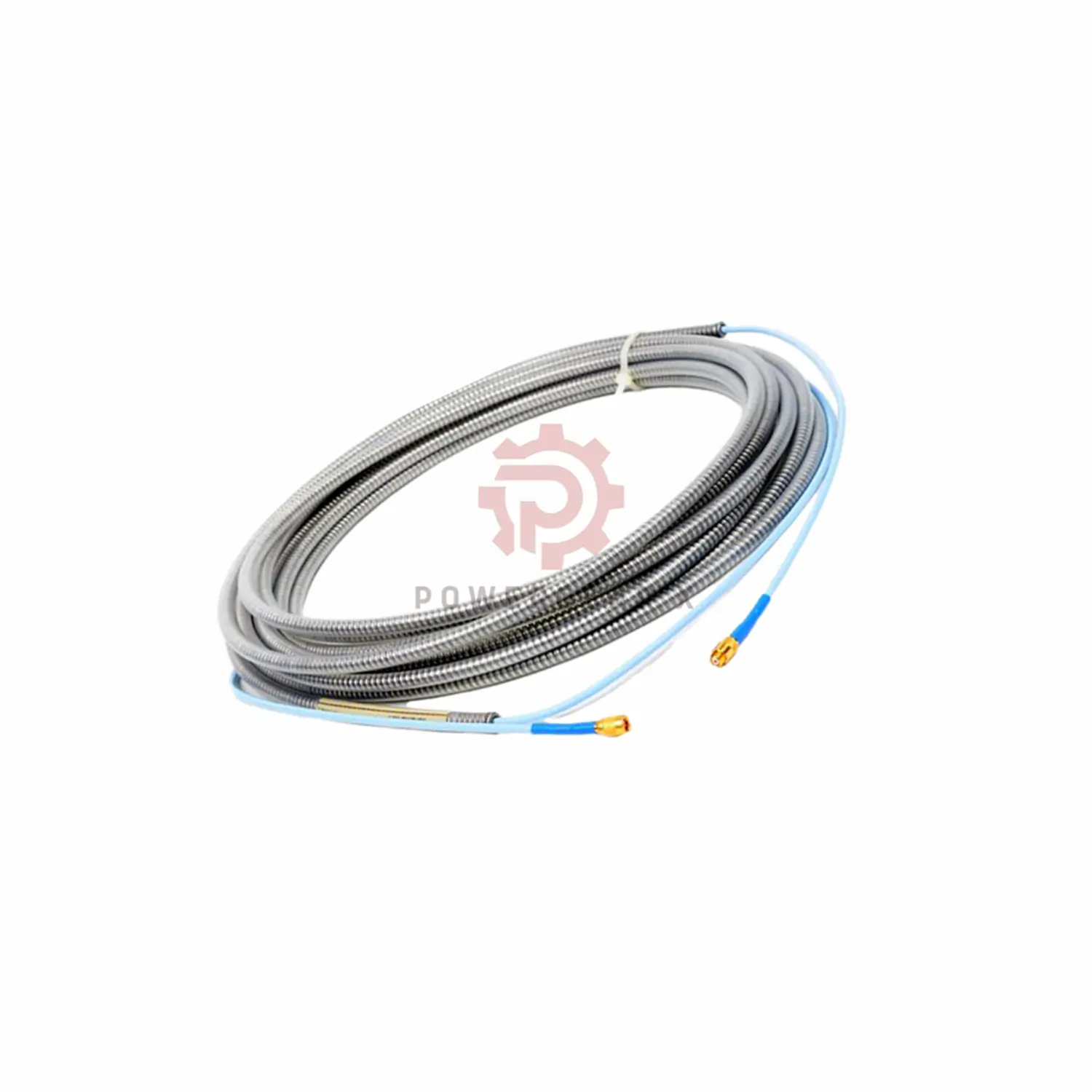

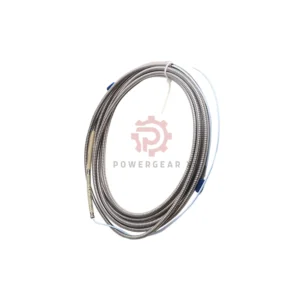

The Bently Nevada 3300 XL 11 mm Extension Cable (Product No. 330730-080-01-00) is a high-performance extension cable designed to work with 3300 XL Proximity Probes. Manufactured in the USA, this cable provides robust, reliable connections in demanding industrial environments. Offering an armored construction option, it ensures superior protection against mechanical damage and harsh conditions. The armored version is ideal for situations requiring extra durability, while the cable’s flexible AISI 302 stainless steel (SST) with an FEP outer jacket offers added strength and protection.
Technical Specifications
- Brand: Bently Nevada
- Product Number: 330730-080-01-00
- Temperature Range: Operating and Storage from -51°C to +177°C (-60°F to +351°F).
- Extension Cable Armor (Optional): Flexible AISI 302 SST with FEP outer jacket.
- Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft), typical.
- Extension Cable Weight: 45 g/m (0.5 oz/ft) for unarmored, total 0.36kg
- Maximum System Length: 305 meters (1,000 feet) from probe to monitor.
- Connector Material: Gold-plated brass.
- Tensile Strength: 330 N (75 pounds) at probe case to probe lead.
- Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG).
- Capacitance Resistance: 2.0 ± 0.5 ohms from center conductor to center conductor.
- Resistance: 0.6 ± 0.2 ohms from coaxial conductor to coaxial conductor.
- Linear Range: 0.5 to 4.5 mm (20 to 180 mils).
- Recommended Gap Setting: 2.5 mm (100 mils).
Ordering Information
- Part Number: 330730-080-01-00
- 080: Cable Length = 8.0 meters (26.2 feet).
- 01: Armored Cable with FEP Outer Jacket.
- 00: Agency Approval Not Required.
Additional options like the FluidLoc cable can be chosen for fluid protection, and connector protectors are available to prevent moisture ingress.
For more detailed information: 3300 XL 11 mm Proximity Transducer System Datasheet
