10313/1/1 5V DC & Watchdog Distribution Module – Reliable Power

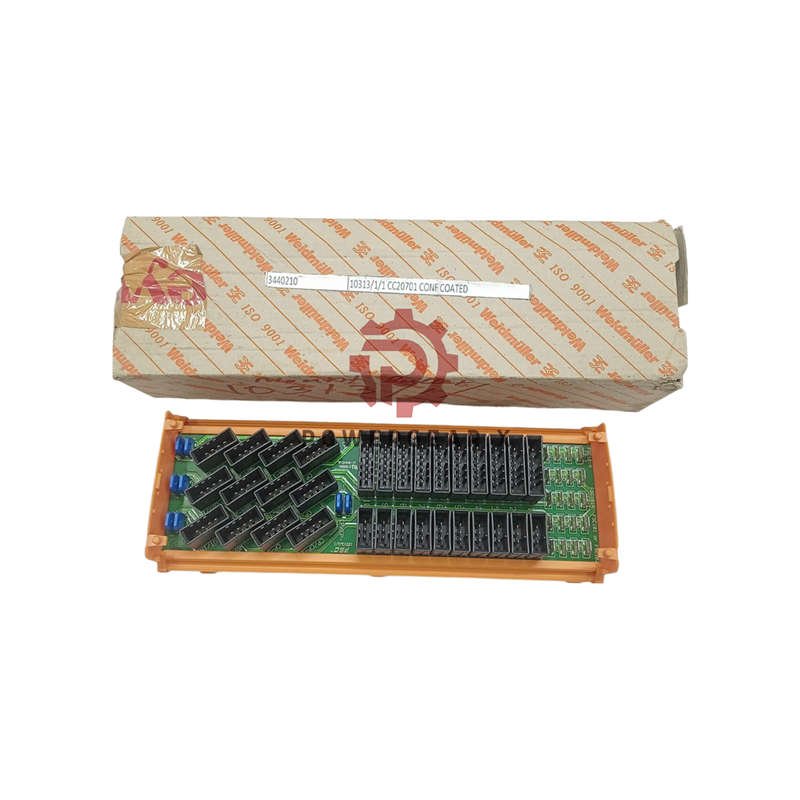

Honeywell 10313/1/1 – 5V DC and Watchdog Distribution Module

The 10313/1/1 delivers stable 5V DC and watchdog signal distribution across FSC control systems. It ensures continuous power and monitoring reliability for both redundant and non-redundant configurations.

Technical Specifications

• Brand: Honeywell
• Model: 10313/1/1 – 5V DC & Watchdog Distribution Module
• Type Number: 10313/1/1 207011
• Approvals: CE, TÜV (UL pending)
• Max Current (Faston Pin): 4 A
• Max Current (I/O Pin): 2 A
• Power Supply: 5V DC distributed input
• Input Type: FSC101 or FSC102 fastons (non-redundant)
• Redundant Input: FSC101R CP-1 and CP-2 fastons
• Connectors: 10 redundant (RCN-1 to RCN-10) and 10 non-redundant (SCN-1 to SCN-10)
• Interlink Option: Additional 10313/1/1 module connection for extended sections
• Mounting: DIN EN rail TS32 / TS35 x 7.5
• Rail Length: 241 mm (9.49 in)
• Dimensions (LxWxH): 240 x 87 x 60 mm (9.45 x 3.43 x 2.36 in)
• Material: Industrial-grade composite housing
• Operating Temp: -25°C to +70°C
• Storage Temp: -40°C to +85°C
• Humidity: 5%–95% non-condensing
• Warranty: 12 months

Shipping Methods

• FedEx International Priority – 2–3 day express delivery with global tracking.
• UPS Worldwide Express – fast and secure service for industrial destinations.
• DHL Global Mail – cost-effective international logistics with tracking visibility.

Professional FAQ

• Q:
  How many I/O backplanes can the 10313/1/1 connect simultaneously?
  A:
  It connects up to twenty backplanes — ten redundant and ten non-redundant.
• Q:
  Can I link two 10313/1/1 modules across cabinets?
  A:
  Yes, dedicated link connectors allow expansion between separate sections.
• Q:
  What is the maximum current each faston pin supports?
  A:
  Each faston pin handles up to 4 amps of continuous current safely.
• Q:
  Does the module generate any power consumption itself?
  A:
  No, its consumption is included within I/O module data specifications.
• Q:
  What rail types are compatible with the mounting system?
  A:
  It fits both TS32 and TS35 x 7.5 DIN rails according to EN standards.
